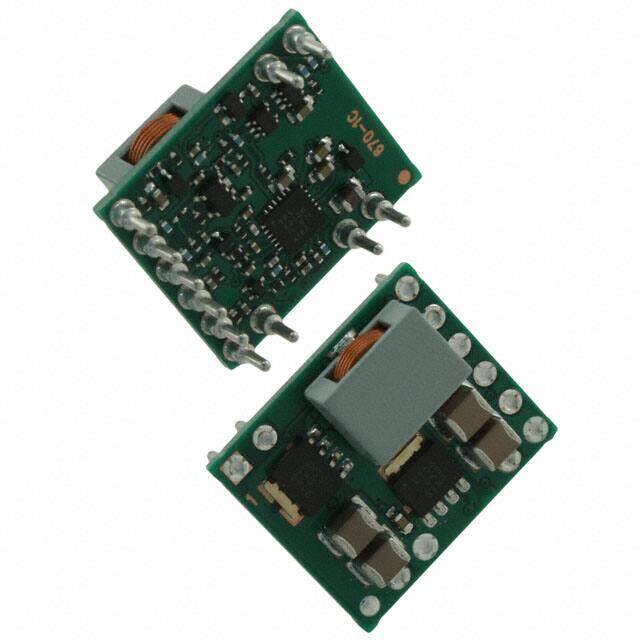

PTH08T220WAH
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.69-5.5V
PDF
/
Buying Options
Total Price: USD $22.39
Unit Price: USD $22.3872
≥1 USD $22.3872
≥10 USD $22.21472
≥100 USD $22.04224
≥500 USD $21.697984
≥1000 USD $20.664494
≥3000 USD $18.942528
Inventory: 165
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case 11-DIP Module
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08T220W
Size / Dimension 0.87Lx0.75W x 0.34 H 22.1mmx19.1mmx8.6mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 88W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form PIN/PEG
Number of Functions 1
Depth 18.93mm
Base Part Number TH08T220
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 16A
Voltage - Output 1 0.69V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 16A
Output Power 88W
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 16A
Total Power Output-Max 52.8W
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
