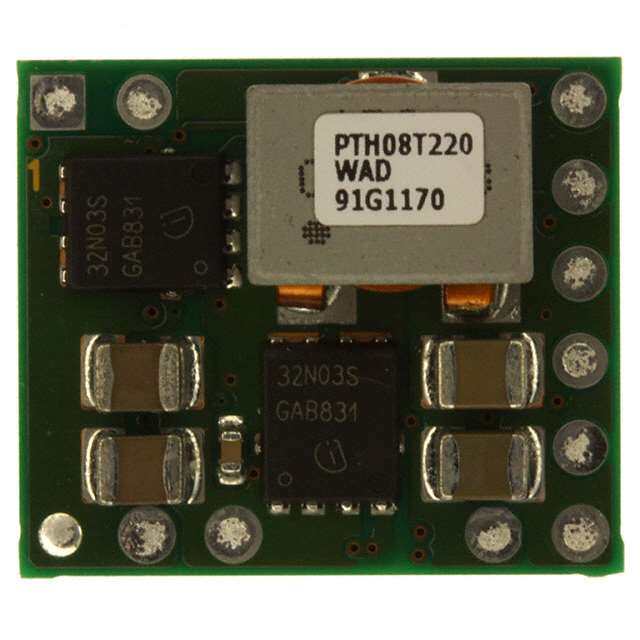

PTH08T220WAD
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 16A HORZ T/H 11-DIP
PDF
/
Buying Options
Total Price: USD $30.58
Unit Price: USD $30.580623
≥1 USD $30.580623
≥10 USD $29.318258
≥100 USD $25.60915
≥500 USD $24.78265
≥1000 USD $23.9571
Inventory: 6
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 11-DIP Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08T220W
Size / Dimension 0.87Lx0.75W x 0.34 H 22.1mmx19.1mmx8.6mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 88W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form PIN/PEG
Number of Functions 1
Depth 18.39mm
Base Part Number TH08T220
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Output Voltage 5.5V
Max Output Current 16A
Voltage - Output 1 0.69V~5.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 16A
Output Power 88W
Max Output Voltage 5.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 16A
Min Output Voltage 690mV
Max Output Power 88W
Isolation Non-Isolated
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 4.5V
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
