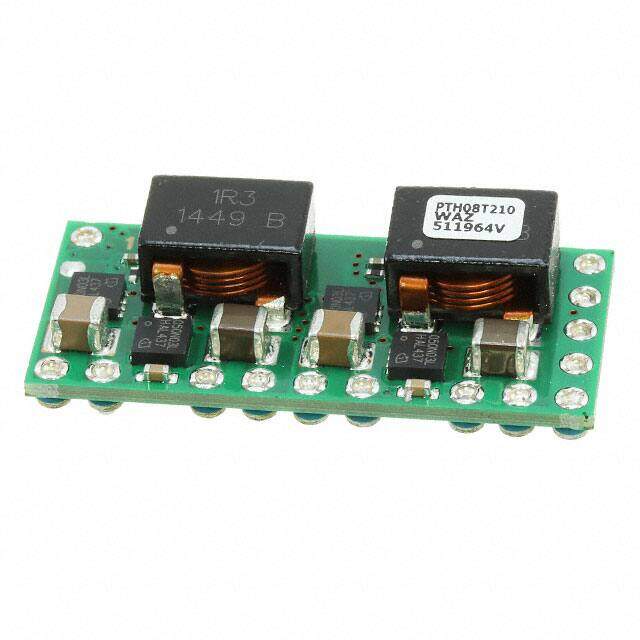

PTH08T210WAZT
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.7V to 3.6V 30A 14-Pin DIP Module T/R
PDF
/
Buying Options
Total Price: USD $26.79
Unit Price: USD $26.7872
≥1 USD $26.7872
Inventory: 1062
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Isolation Non-Isolated
Min Output Voltage 700mV
Total Power Output-Max 99W
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Current 25A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 5.5V
Voltage - Output 1 0.7V~3.6V
Max Output Current 30A
Output Voltage 3.6V
Voltage - Input (Max) 14V
Efficiency 93%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 14
Base Part Number TH08T210
Depth 28.45mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 108W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 1.37Lx0.62W x 0.37 H 34.8mmx15.8mmx9.4mm
Series PTH08T210W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 14
Surface Mount NO
Package / Case 14-SMD Module
Mounting Type Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
