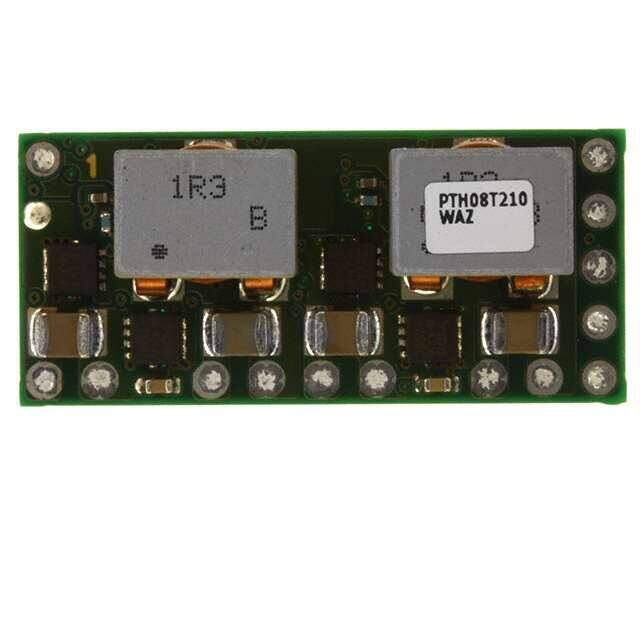

PTH08T210WAZ
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.7-3.6V 30A
PDF
/
Buying Options
Total Price: USD $35.17
Unit Price: USD $35.1736
≥1 USD $35.1736
≥10 USD $34.9008
≥100 USD $34.63064
≥500 USD $34.08944
≥1000 USD $32.466095
≥3000 USD $29.760597
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mounting Type Surface Mount
Package / Case 14-SMD Module
Surface Mount NO
Number of Pins 14
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08T210W
Size / Dimension 1.37Lx0.62W x 0.37 H 34.8mmx15.8mmx9.4mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 90W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 28.45mm
Frequency 480kHz
Base Part Number TH08T210
Pin Count 14
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 93%
Output Voltage 3.6V
Max Output Current 30A
Voltage - Output 1 0.7V~3.6V
Operating Supply Voltage 12V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Max Supply Voltage 14V
Min Supply Voltage 5.5V
Current - Output (Max) 25A
Output Current 30A
Output Power 108W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 30A
Min Output Voltage 700mV
Max Output Power 108W
Isolation Non-Isolated
Nominal Output Voltage 3.6V
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 5.5V
Dimensions
Height 9mm
Length 34.8mm
Thickness 8.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
