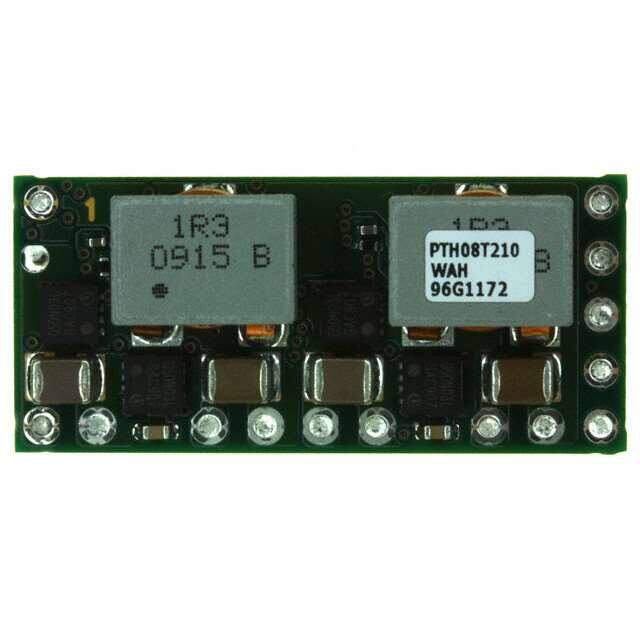

PTH08T210WAH
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .7-3.6V 30A HORZ T/H
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8mm
Height 8.5mm
Technical
Isolation Non-Isolated
Min Output Voltage 700mV
Total Power Output-Max 99W
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Current 25A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 5.5V
Voltage - Output 1 0.7V~3.6V
Max Output Current 30A
Output Voltage 3.6V
Voltage - Input (Max) 14V
Efficiency 93%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 14
Base Part Number TH08T210
Depth 18.75mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 90W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Size / Dimension 1.37Lx0.62W x 0.34 H 34.8mmx15.8mmx8.5mm
Series PTH08T210W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 14
Surface Mount NO
Package / Case 14-DIP Module
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
