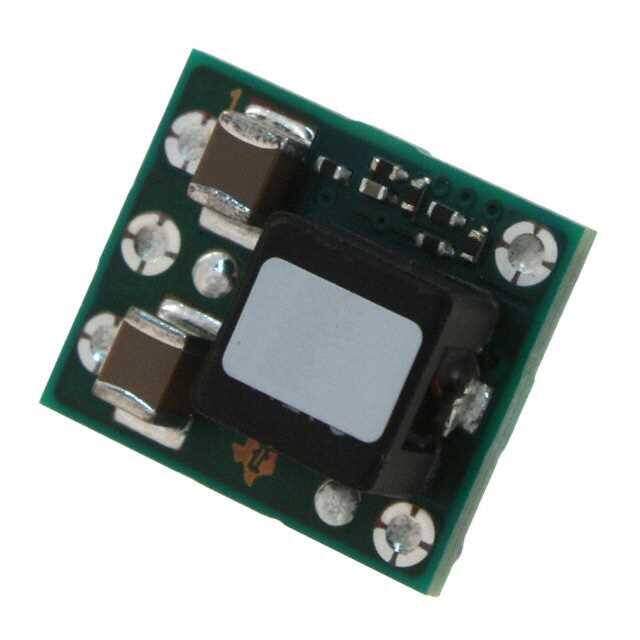

PTH08080WAST image
Favorite
PTH08080WAST image
Favorite

PTH08080WAST

Texas Instruments
RoHS
/
Package 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 0.9-5.5V 2.25A
PDF
/
Inventory: 3159
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)

Physical

Mounting Type Surface Mount
Package / Case 5-SMD Module
Surface Mount NO
Number of Pins 5

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series PTH08080W
Size / Dimension 0.60Lx0.50W x 0.35 H 15.2mmx12.7mmx8.9mm
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 5
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 12.4W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 12.7mm
Base Part Number TH08080
Pin Count 5
Number of Outputs 1
Efficiency 93.5%
Voltage - Input (Max) 18V
Output Voltage 5.5V
Max Output Current 2.25A
Voltage - Output 1 0.9V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Output Current 2.25A
Output Power 10W
Max Output Voltage 5.5V
Current - Output 1 2.25A
Min Output Voltage 900mV
Switcher Configuration BUCK
Switching Frequency-Max 300kHz

Dimensions

Height 8.18mm
Thickness 7.93mm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
