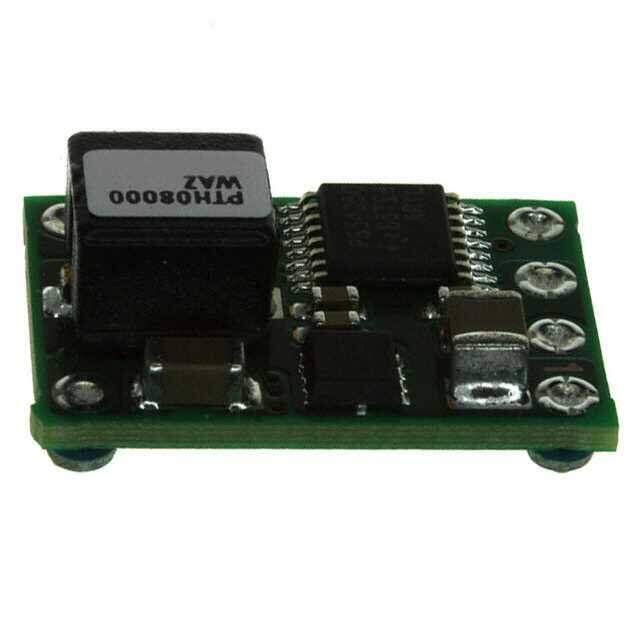

PTH08000WAZ
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-5.5V 2.25A
PDF
/
Buying Options
Total Price: USD $8.12
Unit Price: USD $8.1224
≥1 USD $8.1224
≥10 USD $8.06256
≥100 USD $8.00184
≥500 USD $7.878464
≥1000 USD $7.632117
≥3000 USD $6.893542
Inventory: 322
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Copper, Silver, Tin
Mounting Type Surface Mount
Package / Case 6-SMD Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08000W
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Max Power Dissipation 12.4W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 12.57mm
Base Part Number TH08000
Pin Count 6
Number of Outputs 1
Efficiency 93.5%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 2.25A
Voltage - Output 1 0.9V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 2.25A
Max Output Voltage 5.5V
Current - Output 1 2.25A
Min Output Voltage 900mV
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
