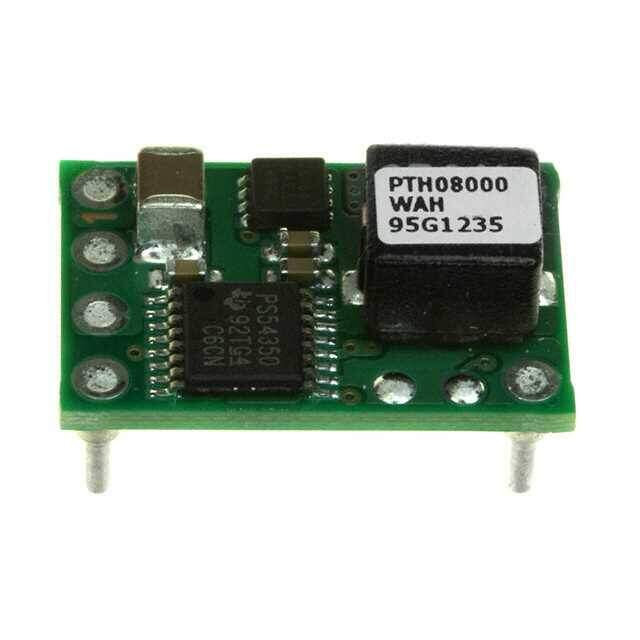

PTH08000WAH
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-5.5V 2.25A
PDF
/
Buying Options
Total Price: USD $6.74
Unit Price: USD $6.74115
≥1 USD $6.74115
≥10 USD $6.35958
≥100 USD $5.9996
≥500 USD $5.66
Inventory: 556
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH08000W
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Max Power Dissipation 12.4W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 18.92mm
Frequency 300kHz
Base Part Number TH08000
Pin Count 6
Number of Outputs 1
Efficiency 93.5%
Output Voltage 5.5V
Max Output Current 2.25A
Voltage - Output 1 0.9V~5.5V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 2.25A
Output Power 12.37W
Max Output Voltage 5.5V
Current - Output 1 2.25A
Min Output Voltage 900mV
Max Output Power 12.37W
Isolation Non-Isolated
Max Input Voltage (DC) 14V
Min Input Voltage (DC) 4.5V
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
