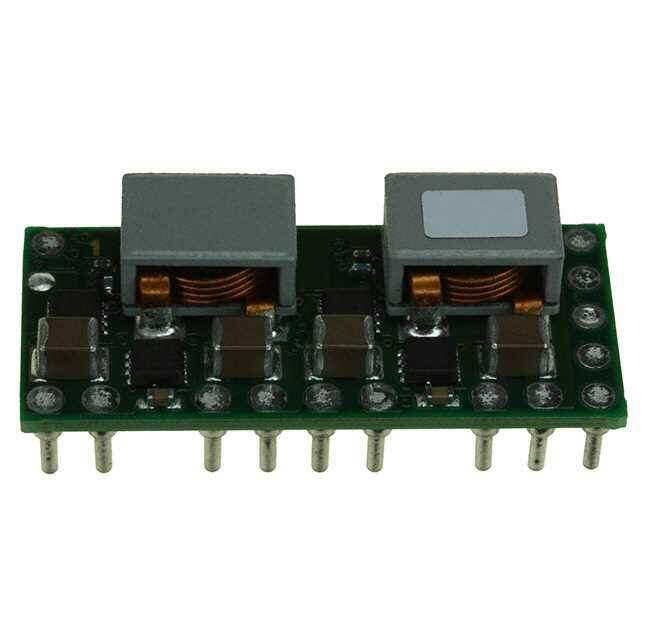

PTH05T210WAD
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .7-3.6V 30A T/H 14DIP
PDF
/
Buying Options
Total Price: USD $36.06
Unit Price: USD $36.0624
≥1 USD $36.0624
≥10 USD $35.78608
≥100 USD $35.50976
≥500 USD $34.954603
≥1000 USD $33.290022
≥3000 USD $30.515804
Inventory: 67
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 14-DIP Module
Surface Mount NO
Number of Pins 14
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH05T210W
Size / Dimension 1.37Lx0.62W x 0.34 H 34.8mmx15.8mmx8.5mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 108W
Technology HYBRID
Terminal Position UNSPECIFIED
Number of Functions 1
Depth 18.75mm
Base Part Number TH05T210
Pin Count 14
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Max Output Current 30A
Voltage - Output 1 0.7V~3.6V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 30A
Output Power 108W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 30A
Total Power Output-Max 99W
Min Output Voltage 700mV
Switching Frequency-Max 740kHz
Isolation Non-Isolated
