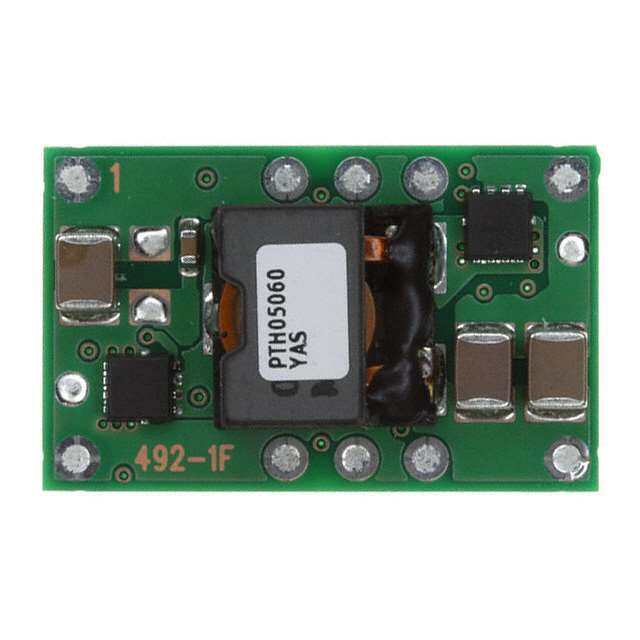

PTH05060YAS
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.55-1.8V 18W
PDF
/
Buying Options
Total Price: USD $18.47
Unit Price: USD $18.4712
≥1 USD $18.4712
≥10 USD $18.33392
≥100 USD $18.19136
≥500 USD $17.907023
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 25.27mm
Height 9mm
Technical
Switching Frequency-Max 350kHz
Min Output Voltage 550mV
Current - Output 1 10A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 1.8V
Quiescent Current 10mA
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.55V~1.8V
Max Output Current 10A
Output Voltage 1.8V
Voltage - Input (Max) 5.5V
Efficiency 86%
Approval Agency "UL,VDE"
Number of Outputs 1
Pin Count 10
Base Part Number TH05060
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 18W
HTS Code 8504.40.85.00
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, UVLO
Size / Dimension 0.99Lx0.62W x 0.38 H 25.3mmx15.8mmx9.6mm
Series PTH05060Y
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 3.7g
Number of Pins 10
Surface Mount NO
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
