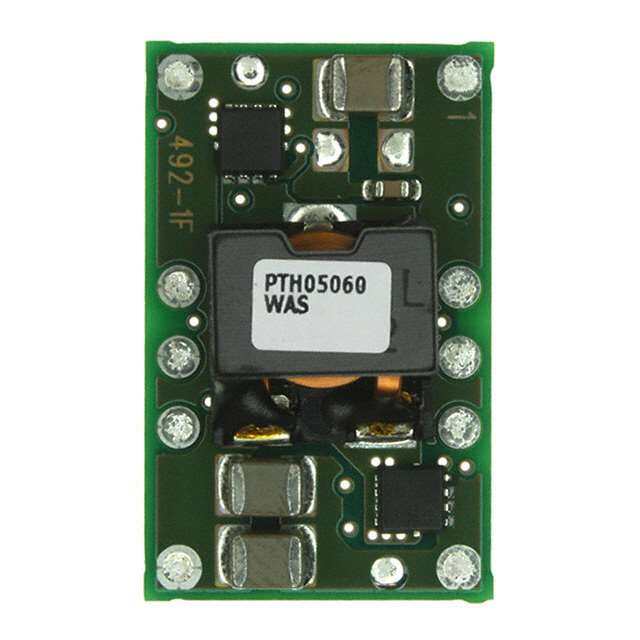

PTH05060WAST
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-3.6V 36W
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5724
≥1 USD $15.5724
≥10 USD $12.7775
≥100 USD $12.37755
≥500 USD $11.97855
≥1000 USD $11.57955
Inventory: 256
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 25.27mm
Height 9mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Switching Frequency-Max 325kHz
Max Output Power 36W
Min Output Voltage 800mV
Current - Output 1 10A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 36W
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.8V~3.6V
Max Output Current 10A
Output Voltage 3.6V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH05060
Depth 15.27mm
Number of Functions 1
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 36W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, UVLO
Size / Dimension 0.99Lx0.62W x 0.38 H 25.3mmx15.8mmx9.6mm
Series PTH05060W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount YES
Package / Case 10-SMD Module
Mounting Type Surface Mount
