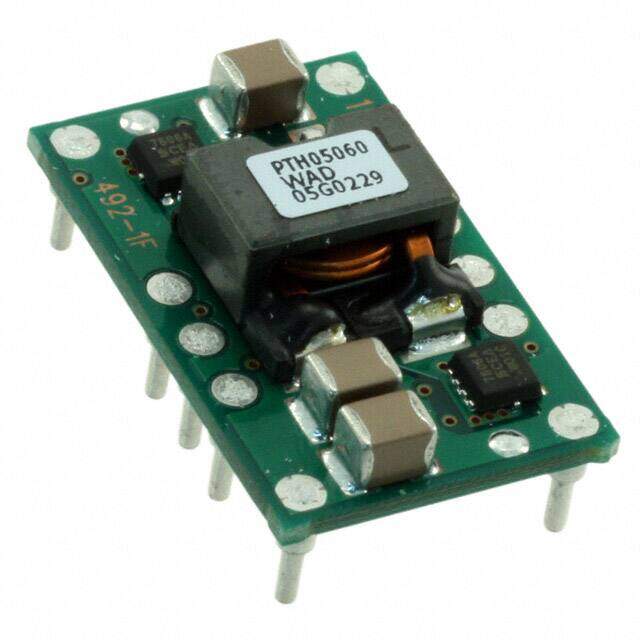

PTH05060WAD
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP ADJ 10A 5V T/H 10-DIP
PDF
/
Buying Options
Total Price: USD $14.78
Unit Price: USD $14.7752
≥1 USD $14.7752
≥10 USD $14.6608
≥100 USD $14.54816
≥500 USD $14.32053
≥1000 USD $13.638654
≥3000 USD $12.502107
Inventory: 237
Minimum: 1
-
+
Technical Details
Technical
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 36W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 15.75mm
Frequency 300kHz
Base Part Number TH05060
Pin Count 10
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 94%
Output Voltage 3.6V
Max Output Current 10A
Voltage - Output 1 0.8V~3.6V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Output Power 36W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Min Output Voltage 800mV
Max Output Power 36W
Isolation Non-Isolated
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 1.00Lx0.62W x 0.35 H 25.4mmx15.7mmx8.9mm
Series PTH05060W
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 9mm
Length 25.27mm
Thickness 8.75mm
Physical
Weight 2.9g
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 8 Weeks
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
