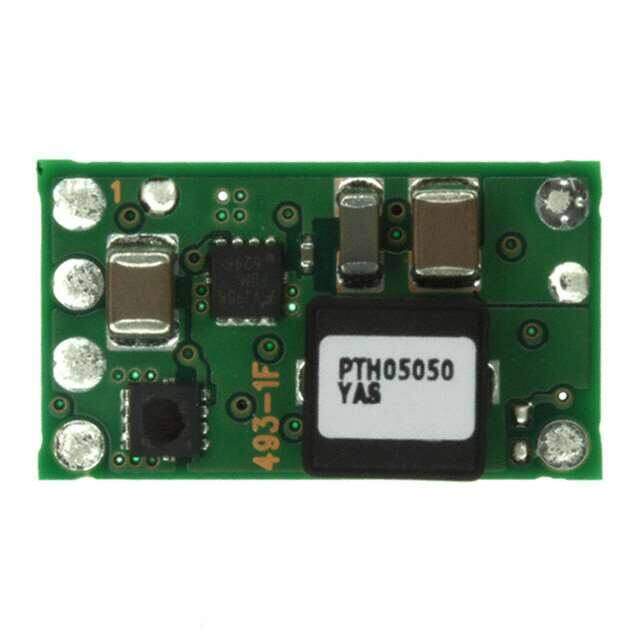

PTH05050YAST
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.55-1.8V
PDF
/
Buying Options
Total Price: USD $16.28
Unit Price: USD $16.275604
≥1 USD $16.275604
≥10 USD $15.354343
≥100 USD $14.48523
≥500 USD $13.665311
≥1000 USD $12.891805
Inventory: 1237
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height 9.144mm
Technical
Isolation Non-Isolated
Min Output Voltage 550mV
Current - Output 1 6A
Max Output Voltage 1.8V
Quiescent Current 10mA
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.55V~1.8V
Max Output Current 6A
Output Voltage 1.8V
Voltage - Input (Max) 5.5V
Efficiency 87%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 6
Base Part Number TH05050
Depth 12.57mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Remote On/Off, OCP, UVLO
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
Series PTH05050Y
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Surface Mount NO
Package / Case 6-SMD Module
Mounting Type Surface Mount
