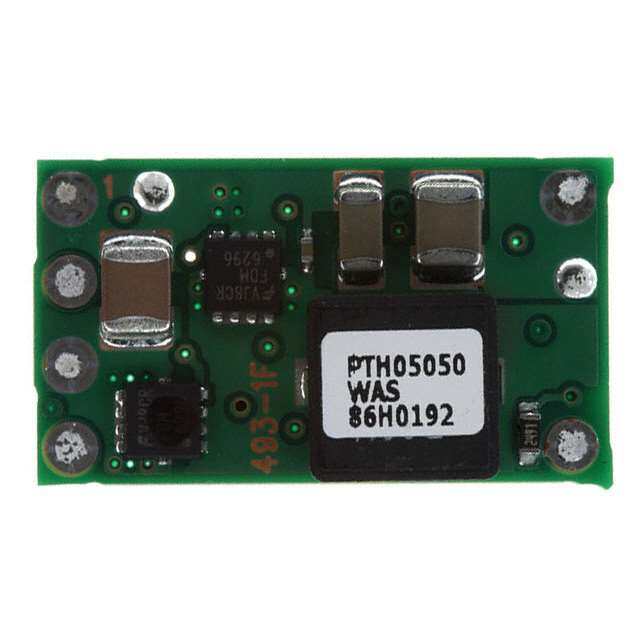

PTH05050WAS
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
TEXAS INSTRUMENTS - PTH05050WAS - IC, NON-ISOLATED ADJUSTABLE POWER MODULE, 6-DIP
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.4256
≥1 USD $12.4256
≥10 USD $12.32704
≥100 USD $12.23288
≥500 USD $12.045088
≥1000 USD $11.668642
≥3000 USD $10.539417
Inventory: 358
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Contact Plating Lead, Tin
Mounting Type Surface Mount
Package / Case 6-SMD Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH05050W
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
JESD-609 Code e0
Feature Remote On/Off, OCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Lead (Sn/Pb)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 21.6W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 12.57mm
Frequency 600kHz
Base Part Number TH05050
Pin Count 6
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 95%
Output Voltage 3.6V
Max Output Current 6A
Voltage - Output 1 0.8V~3.6V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 6A
Output Power 135W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Nominal Input Voltage 5.5V
Min Output Voltage 800mV
Isolation Non-Isolated
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Alternative Model
