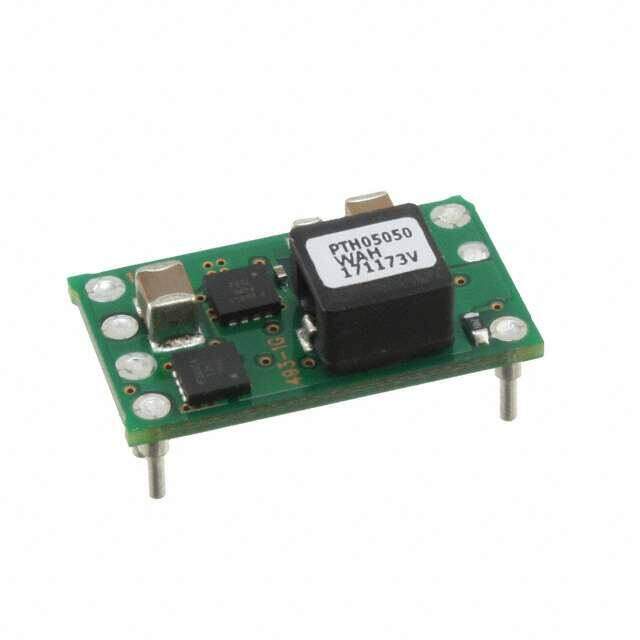

PTH05050WAD

Texas Instruments
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description MODULE PIP ADJ 6A 5V HORZ T/H
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.4256
≥1 USD $12.4256
≥10 USD $12.32704
≥100 USD $12.23288
≥500 USD $12.045088
≥1000 USD $11.668642
≥3000 USD $10.539417
Inventory: 211
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 8.25mm
Height 8.5mm

Technical

Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Max Output Power 21.6W
Min Output Voltage 800mV
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 3.6V
Output Power 21.6W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.8V~3.6V
Max Output Current 6A
Output Voltage 3.6V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 6
Base Part Number TH05050
Frequency 600kHz
Depth 12.57mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 21.6W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.87Lx0.50W x 0.34 H 22.1mmx12.7mmx8.6mm
Series PTH05050W
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 6
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks

Alternative Model
