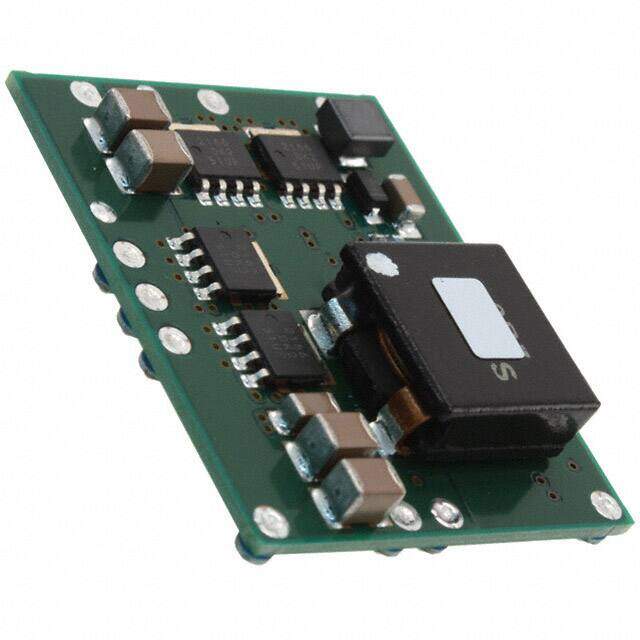

PTH05030WAST
RoHS
/
Package 13-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-3.6V 108W
PDF
/
Buying Options
Total Price: USD $42.24
Unit Price: USD $42.24175
≥1 USD $42.24175
≥10 USD $34.6598
≥100 USD $33.5768
≥500 USD $32.4938
≥1000 USD $31.4108
Inventory: 1140
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 325kHz
Min Output Voltage 800mV
Total Power Output-Max 99W
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 108W
Output Current 30A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.8V~3.6V
Max Output Current 30A
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 13
Base Part Number TH05030
Depth 28.45mm
Number of Functions 1
Terminal Form BALL
Terminal Position QUAD
Technology HYBRID
Max Power Dissipation 108W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 1.37Lx1.12W x 0.38 H 34.8mmx28.5mmx9.6mm
Series PTH05030W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 13
Surface Mount YES
Package / Case 13-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 8 Weeks
Alternative Model
