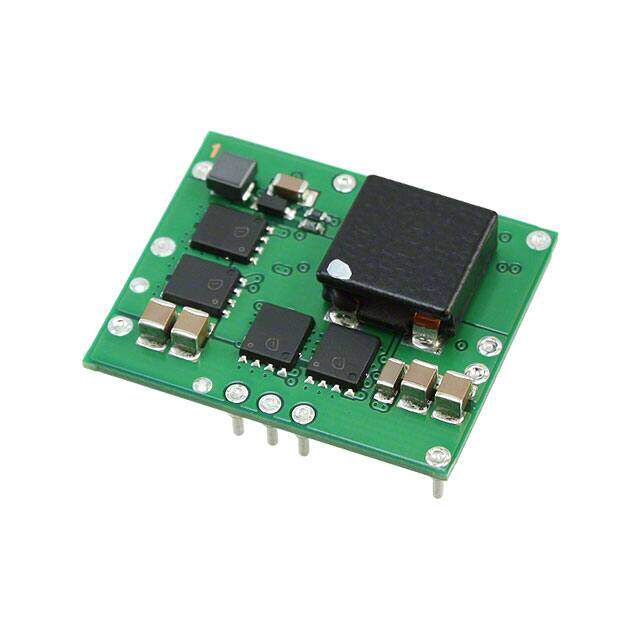

PTH05030WAH
RoHS
RoHS compliant
RoHS compliantPackage 13-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .8-3.6V 30A T/H 13DIP
PDF
/
Buying Options
Total Price: USD $25.42
Unit Price: USD $25.4232
≥1 USD $25.4232
≥10 USD $25.22432
≥100 USD $25.028854
≥500 USD $24.637527
≥1000 USD $23.464285
≥3000 USD $21.50896
Inventory: 46
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Switching Frequency-Max 325kHz
Max Output Power 108W
Min Output Voltage 800mV
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 108W
Output Current 30A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.8V~3.6V
Max Output Current 30A
Output Voltage 3.6V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 13
Base Part Number TH05030
Depth 28.45mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position QUAD
Technology HYBRID
Max Power Dissipation 108W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature UVLO
JESD-609 Code e3
Size / Dimension 1.37Lx1.12W x 0.35 H 34.8mmx28.4mmx8.9mm
Series PTH05030W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 13
Surface Mount NO
Package / Case 13-DIP Module
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
