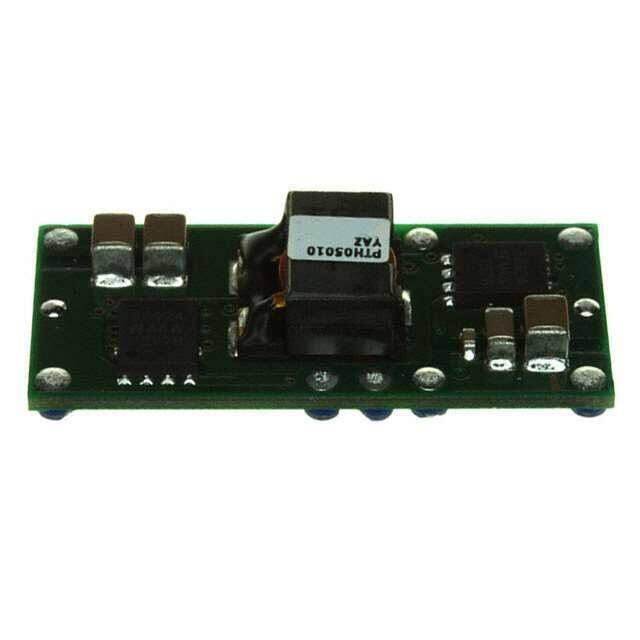

PTH05010YAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.55-1.8V 27W
PDF
/
Buying Options
Total Price: USD $20.35
Unit Price: USD $20.3456
≥1 USD $20.3456
≥10 USD $20.18896
≥100 USD $20.03144
≥500 USD $19.718688
≥1000 USD $18.779728
≥3000 USD $17.214648
Inventory: 191
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Isolation Non-Isolated
Min Output Voltage 550mV
Current - Output 1 15A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 1.8V
Quiescent Current 10mA
Output Current 15A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.55V~1.8V
Max Output Current 15A
Output Voltage 1.8V
Voltage - Input (Max) 5.5V
Efficiency 88%
Approval Agency UL, VDE
Number of Outputs 1
Pin Count 20
Base Part Number TH05010
Depth 15.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 27W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, UVLO
JESD-609 Code e1
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.8mmx9.6mm
Series PTH05010Y
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 3.7g
Number of Pins 10
Surface Mount YES
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 8 Weeks
Alternative Model
