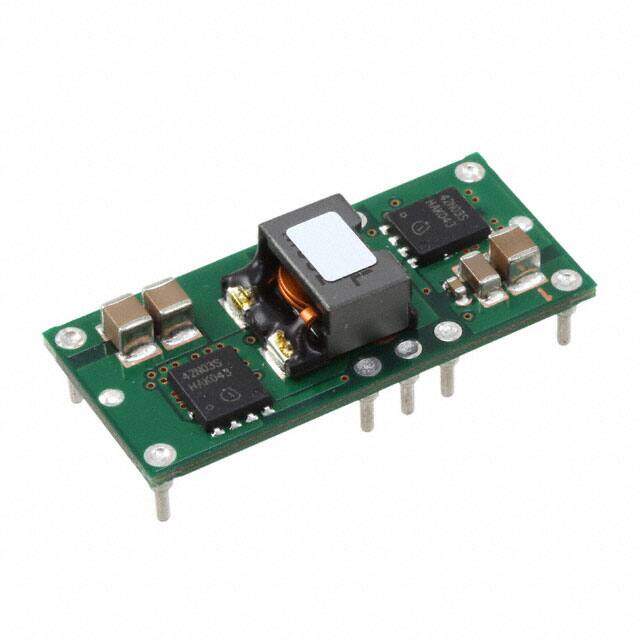

PTH05010YAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 5VIN 1-OUT 0.55V to 1.8V 15A 10-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $42.29
Unit Price: USD $42.29495
≥1 USD $42.29495
≥10 USD $34.7035
≥100 USD $33.61955
≥500 USD $32.53465
≥1000 USD $31.4507
Inventory: 1156
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 34.8mm
Height 8.89mm
Technical
Isolation Non-Isolated
Min Output Voltage 550mV
Current - Output 1 15A
Max Output Voltage 1.8V
Quiescent Current 10mA
Output Current 15A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.55V~1.8V
Max Output Current 15A
Output Voltage 1.8V
Voltage - Input (Max) 5.5V
Efficiency 88%
Approval Agency UL, VDE
Number of Outputs 1
JESD-30 Code R-XXMA-P20
Pin Count 20
Base Part Number TH05010
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 27W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 1.37Lx0.62W x 0.35 H 34.8mmx15.7mmx8.9mm
Series PTH05010Y
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 3.7g
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
