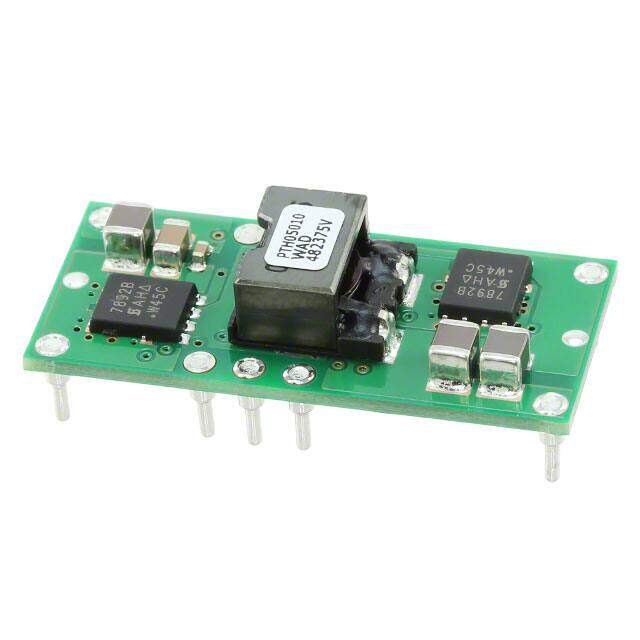

PTH05010WAD
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 5VIN 1-OUT 0.8V to 3.6V 15A 10-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $16.68
Unit Price: USD $16.6848
≥1 USD $16.6848
≥10 USD $16.5528
≥100 USD $16.4252
≥500 USD $16.168416
≥1000 USD $15.398416
≥3000 USD $14.115288
Inventory: 70
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Max Output Power 54W
Min Output Voltage 800mV
Current - Output 1 15A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 54W
Output Current 15A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.8V~3.6V
Max Output Current 15A
Output Voltage 3.6V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH05010
Frequency 300kHz
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 54W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 1.37Lx0.62W x 0.35 H 34.8mmx15.7mmx8.9mm
Series PTH05010W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
