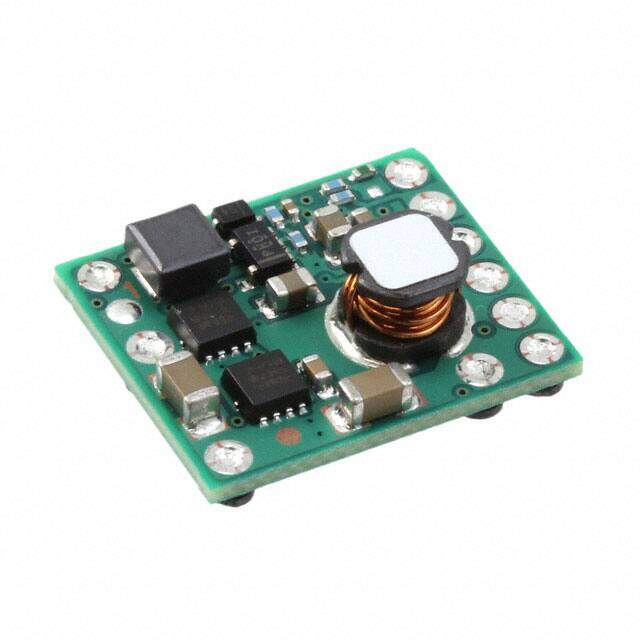

PTH04T261WAS
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 3.6V 3A 10-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $12.64
Unit Price: USD $12.639398
≥1 USD $12.639398
≥10 USD $11.923961
≥100 USD $11.249021
≥500 USD $10.612282
≥1000 USD $10.011587
Inventory: 1242
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount YES
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH04T261W
Size / Dimension 0.75Lx0.62W x 0.36 H 19.1mmx15.7mmx9.1mm
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 11W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form BALL
Number of Functions 1
Base Part Number TH04T261
Pin Count 10
Number of Outputs 1
Approval Agency UL, CSA, VDE, EN
Efficiency 95%
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Max Output Current 3A
Voltage - Output 1 0.69V~3.6V
Voltage - Input (Min) 2.2V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 3A
Max Output Voltage 3.6V
Current - Output 1 3A
Min Output Voltage 690mV
Dimensions
Height 9.144mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
