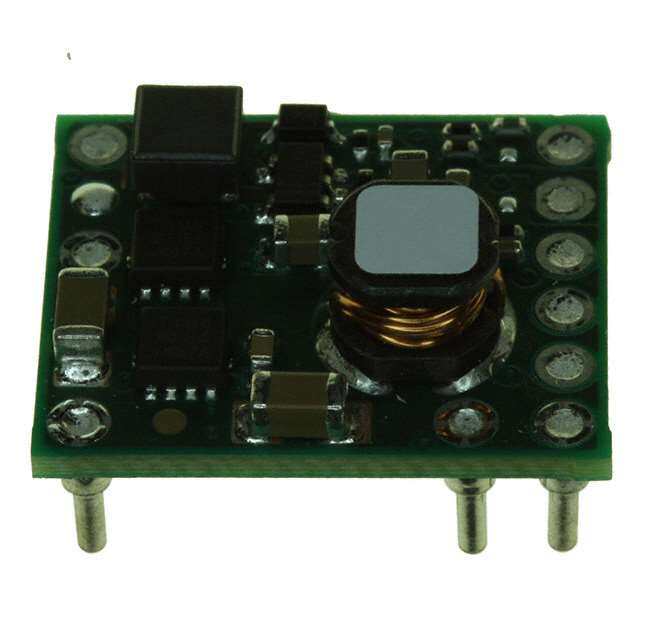

PTH04T260WAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 3.6V 3A 10-Pin SMD Module Tray
PDF
/
Buying Options
Total Price: USD $10.16
Unit Price: USD $10.164
≥1 USD $10.164
≥10 USD $10.08656
≥100 USD $10.00912
≥500 USD $9.855023
≥1000 USD $9.547023
≥3000 USD $8.623102
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount YES
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH04T260W
Size / Dimension 0.75Lx0.62W x 0.34 H 19.1mmx15.7mmx8.6mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Max Power Dissipation 11W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 15.75mm
Base Part Number TH04T260
Pin Count 10
Number of Outputs 1
Efficiency 95%
Output Voltage 3.6V
Max Output Current 3A
Voltage - Output 1 0.69V~3.6V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 3A
Output Power 10.8W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 3A
Min Output Voltage 690mV
Max Output Power 10.8W
Isolation Non-Isolated
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 2.2V
Dimensions
Height 9.09mm
Thickness 7.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
