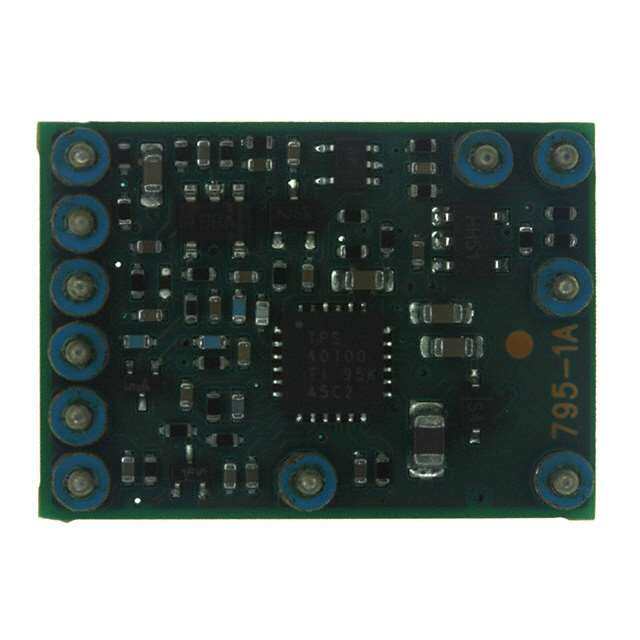

PTH04T241WAZT
RoHS
RoHS compliant
RoHS compliantPackage 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC PWR MGMT ADJ 10A 11SMD
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5672
≥1 USD $15.5672
≥10 USD $15.44928
≥100 USD $15.3296
≥500 USD $15.090592
≥1000 USD $14.371808
≥3000 USD $13.174216
Inventory: 251
Minimum: 1
-
+
Technical Details
Technical
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 36W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Depth 15.75mm
Base Part Number TH04T241
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 94%
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Max Output Current 10A
Voltage - Output 1 0.69V~3.6V
Voltage - Input (Min) 2.2V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.87Lx0.62W x 0.35 H 22.1mmx15.7mmx8.9mm
Series PTH04T241W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Total Power Output-Max 33W
Min Output Voltage 690mV
Switching Frequency-Max 400kHz
Isolation Non-Isolated
Physical
Number of Pins 11
Surface Mount YES
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 6 Weeks
Dimensions
Height 7.5mm
Thickness 7.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
