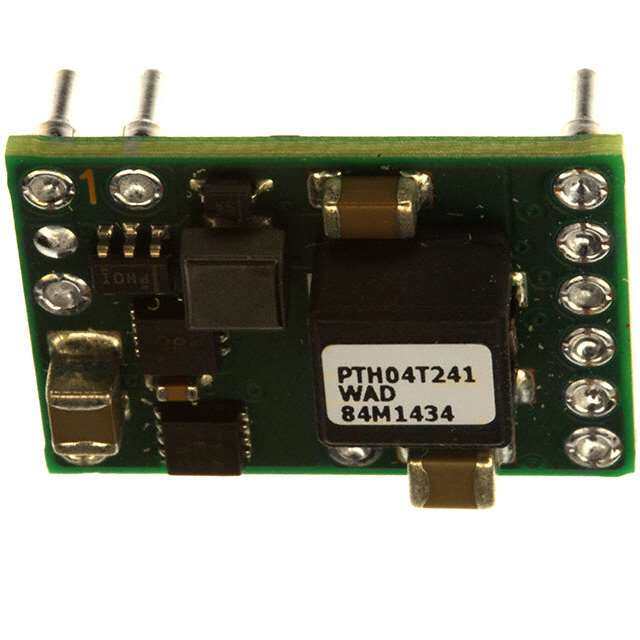

PTH04T241WAD
RoHS
RoHS compliant
RoHS compliantPackage 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 3.6V 10A 11-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5672
≥1 USD $15.5672
≥10 USD $15.44928
≥100 USD $15.3296
≥500 USD $15.090592
≥1000 USD $14.371834
≥3000 USD $13.174225
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Tin
Mounting Type Through Hole
Package / Case 11-DIP Module
Surface Mount NO
Number of Pins 11
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH04T241W
Size / Dimension 0.87Lx0.62W x 0.33 H 22.1mmx15.7mmx8.4mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 36W
Technology HYBRID
Terminal Position UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Depth 15.75mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TH04T241
Pin Count 11
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency UL, CSA
Efficiency 94%
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Max Output Current 10A
Voltage - Output 1 0.69V~3.6V
Voltage - Input (Min) 2.2V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Output Power 36W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Total Power Output-Max 33W
Min Output Voltage 690mV
Switching Frequency-Max 400kHz
Isolation Non-Isolated
