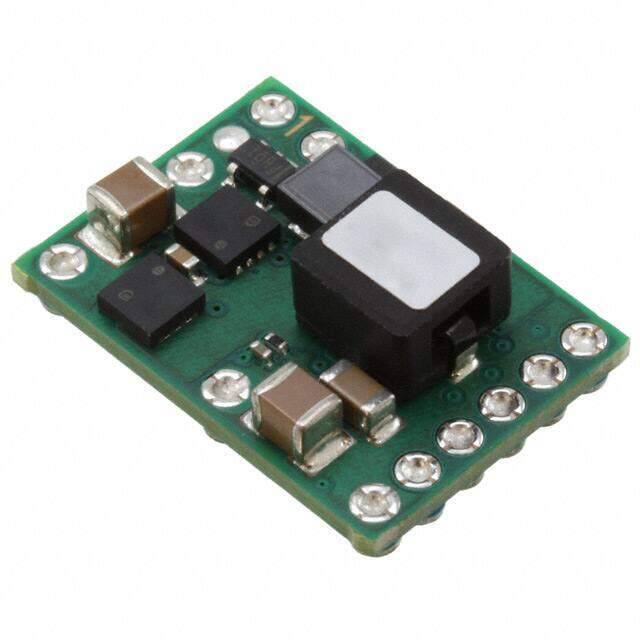

PTH04T240WAZ
RoHS
RoHS compliant
RoHS compliantPackage 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 3.6V 10A 11-Pin DIP Module T/R
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5672
≥1 USD $15.5672
≥10 USD $15.44928
≥100 USD $15.3296
≥500 USD $15.090592
≥1000 USD $14.371834
≥3000 USD $13.174225
Inventory: 492
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mounting Type Surface Mount
Package / Case 11-SMD Module
Surface Mount YES
Number of Pins 11
Weight 3.8g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH04040W
Size / Dimension 0.87Lx0.62W x 0.35 H 22.1mmx15.8mmx8.9mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 11
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 36W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 2.54mm
Depth 15.75mm
Frequency 300kHz
Base Part Number TH04T240
Pin Count 11
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 94%
Output Voltage 3.6V
Max Output Current 10A
Voltage - Output 1 0.69V~3.6V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 10A
Output Power 36W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 10A
Min Output Voltage 690mV
Max Output Power 36W
Isolation Non-Isolated
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 2.2V
Dimensions
Height 7.5mm
Thickness 7.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
