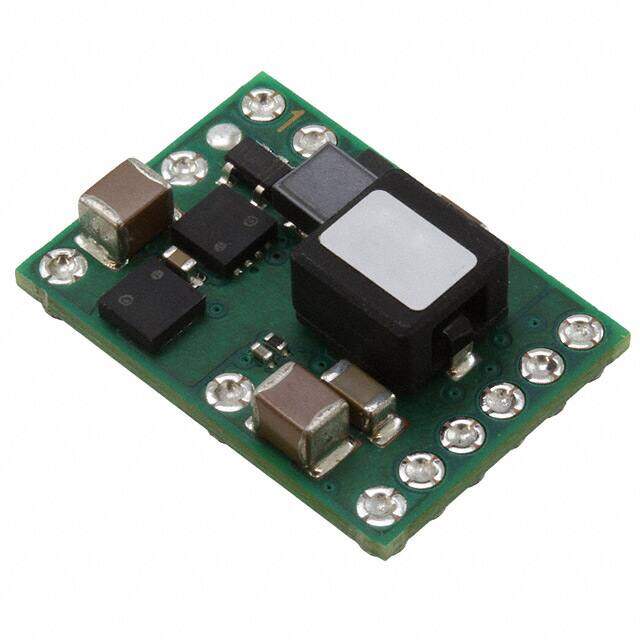

PTH04T240WAS
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 0.69V to 3.6V 10A 11-Pin DIP Module T/R
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5672
≥1 USD $15.5672
≥10 USD $15.44928
≥100 USD $15.3296
≥500 USD $15.090592
≥1000 USD $14.371834
≥3000 USD $13.174225
Inventory: 87
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 8.33mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Min Output Voltage 690mV
Total Power Output-Max 33W
Current - Output 1 10A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 36W
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 2.2V
Voltage - Output 1 0.69V~3.6V
Max Output Current 10A
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 11
Base Part Number TH04T240
Depth 15.75mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form BALL
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 36W
Power Rating 36W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.87Lx0.62W x 0.35 H 22.1mmx15.7mmx8.9mm
Series PTH04040W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount YES
Package / Case 11-SMD Module
