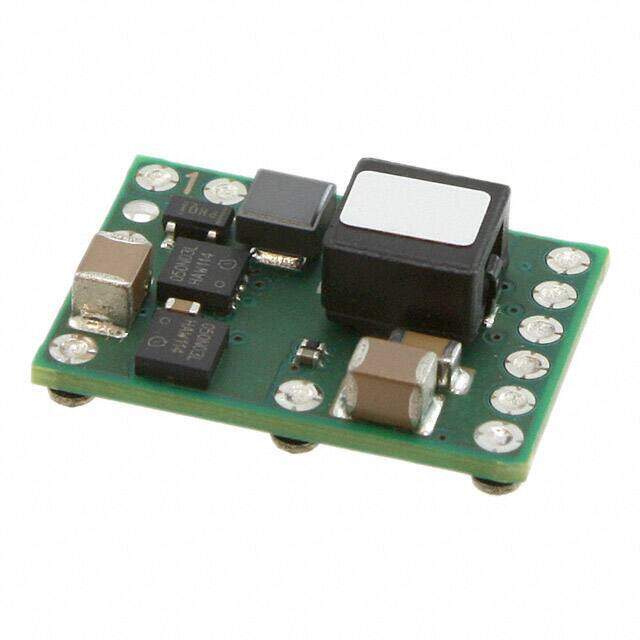

PTH04T240FAS
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP 10A 2.2/5.5V 11SMD
PDF
/
Buying Options
Total Price: USD $18.87
Unit Price: USD $18.872977
≥1 USD $18.872977
≥10 USD $17.804698
≥100 USD $16.796881
≥500 USD $15.846115
≥1000 USD $14.949166
Inventory: 1167
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 7.5mm
Height 8.33mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Min Output Voltage 690mV
Current - Output 1 10A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 2V
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 2.2V
Voltage - Output 1 0.7V~2V
Max Output Current 10A
Output Voltage 2V
Voltage - Input (Max) 5.5V
Efficiency 91%
Number of Outputs 1
Pin Count 11
Base Part Number TH04T240
Depth 15.75mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.87Lx0.62W x 0.35 H 22.1mmx15.7mmx8.9mm
Series PTH04T240F
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount NO
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 8 Weeks
Alternative Model
