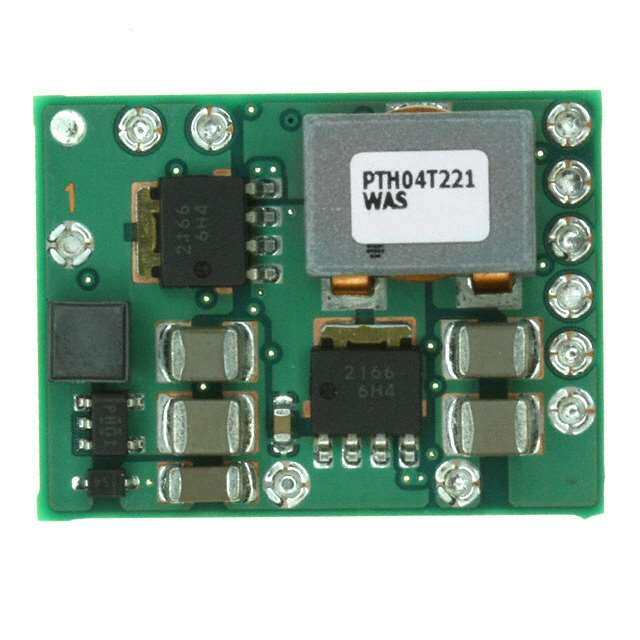

PTH04T221WAST
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.69-3.6V
PDF
/
Inventory: 5525
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Length 25.27mm
Height 9.144mm
Technical
Min Output Voltage 690mV
Current - Output 1 16A
Max Output Voltage 3.6V
Output Current 16A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 2.2V
Voltage - Output 1 0.69V~3.6V
Max Output Current 16A
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 11
Base Part Number TH04T221
Number of Functions 1
Peak Reflow Temperature (Cel) 235; 260
Terminal Form BALL
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 58W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Terminal Finish TIN LEAD
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code no
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 0.95Lx0.75W x 0.36 H 24.1mmx19.1mmx9.1mm
Series PTH04T221W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 11
Surface Mount YES
Package / Case 11-SMD Module
Mounting Type Surface Mount
