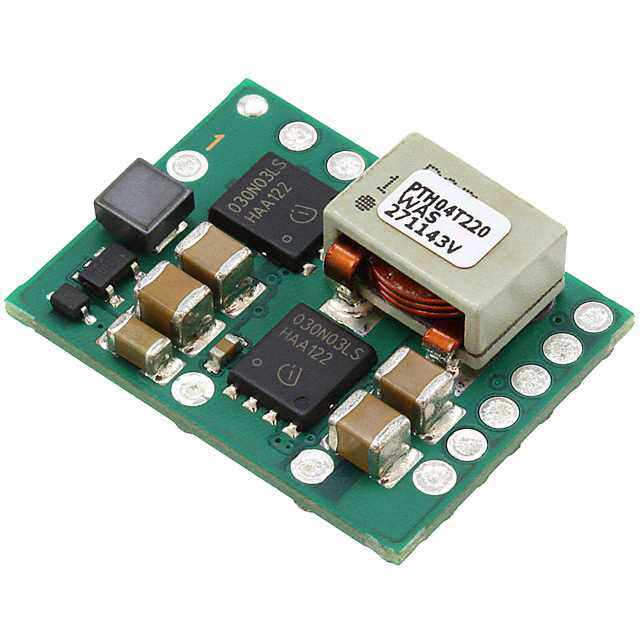

PTH04T220WAS
RoHS
/
Package 11-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
16-A, 2.2-V to 5.5-V Input, Non-Isolated, Wide-Output, Adjustable Power Module with TurboTrans 11-Surface Mount Modul...
PDF
/
Buying Options
Total Price: USD $23.33
Unit Price: USD $23.3282
≥1 USD $23.3282
≥10 USD $19.14155
≥100 USD $18.54305
≥500 USD $17.94455
≥1000 USD $17.347
Inventory: 1444
Minimum: 1
-
+
Technical Details
Dimensions
Thickness 8.5mm
Length 25.27mm
Height 0m
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Technical
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Min Output Voltage 690mV
Current - Output 1 16A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Current 16A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Input (Min) 2.2V
Voltage - Output 1 0.69V~3.6V
Max Output Current 16A
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 94%
Approval Agency UL, CSA
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 11
Base Part Number TH04T220
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Depth 18.92mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 58W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.95Lx0.75W x 0.36 H 24.1mmx19.1mmx9.1mm
Series PTH04T220W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 5.3g
Number of Pins 11
Surface Mount YES
Package / Case 11-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks
Alternative Model
