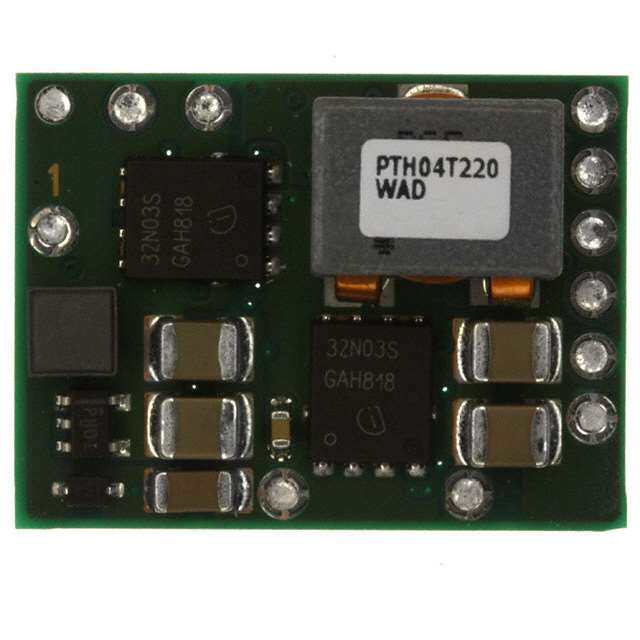

PTH04T220WAD

Texas Instruments
RoHS
RoHS RoHS compliant
Package 11-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 0.69V to 3.6V 16A 11-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $30.41
Unit Price: USD $30.41425
≥1 USD $30.41425
≥10 USD $24.95555
≥100 USD $24.1756
≥500 USD $23.39565
≥1000 USD $22.6157
Inventory: 2123
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 8.5mm
Length 25.27mm
Height 0m

Technical

Min Input Voltage (DC) 2.2V
Max Input Voltage (DC) 5.5V
Nominal Output Voltage 3.6V
Isolation Non-Isolated
Switching Frequency-Max 400kHz
Max Output Power 57.6W
Min Output Voltage 690mV
Current - Output 1 16A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 57.6W
Output Current 16A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.69V~3.6V
Max Output Current 16A
Output Voltage 3.6V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 11
Base Part Number TH04T220
Depth 18.92mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 57.6W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 11
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 1.00Lx0.75W x 0.34 H 25.4mmx19.1mmx8.6mm
Series PTH04T220W
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Weight 5.3g
Number of Pins 11
Surface Mount NO
Package / Case 11-DIP Module
Mounting Type Through Hole
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 6 Weeks

Alternative Model

VI-JNP-MZ-S

VI-JNP-MZ-S
