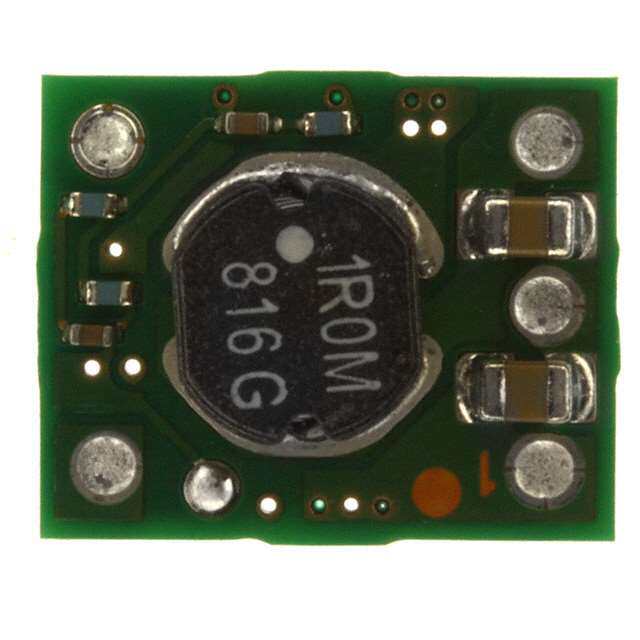

PTH04070WAZ
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-3.6V 3A
PDF
/
Buying Options
Total Price: USD $7.44
Unit Price: USD $7.4448
≥1 USD $7.4448
≥10 USD $7.33568
≥100 USD $7.23008
≥500 USD $7.017472
≥1000 USD $6.8046
≥3000 USD $6.591983
Inventory: 833
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 7.56mm
Height 7.81mm
Technical
Min Input Voltage (DC) 3V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Max Output Power 10.8W
Min Output Voltage 900mV
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 10.8W
Output Current 3A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Output 1 0.9V~3.6V
Max Output Current 3A
Output Voltage 3.6V
Efficiency 92%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 5
Base Part Number TH04070
Frequency 700kHz
Depth 12.57mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature OCP, UVLO
JESD-609 Code e1
Size / Dimension 0.50Lx0.40W x 0.32 H 12.7mmx10.2mmx8.1mm
Series PTH04070W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
Contact Plating Copper, Silver, Tin
