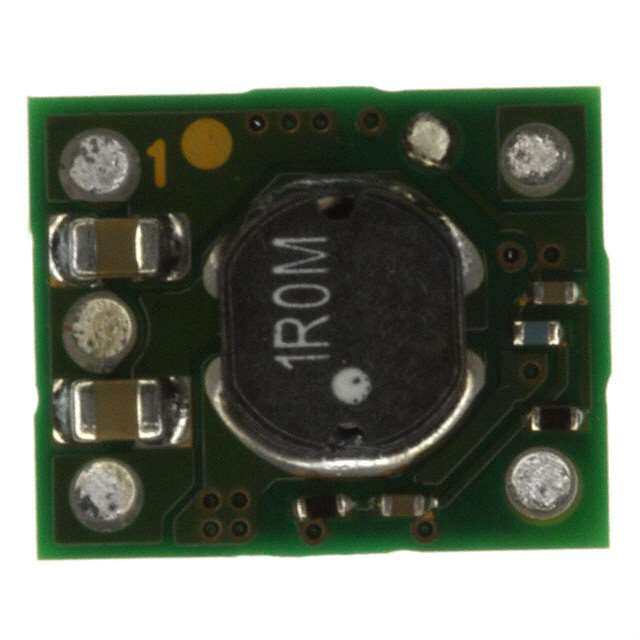

PTH04070WAST

Texas Instruments
RoHS
/
Package 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description REG SW 3.3V/5VIN 3A ADJ HORZ SMD
PDF
/
Buying Options
Total Price: USD $8.59
Unit Price: USD $8.5918
≥1 USD $8.5918
≥10 USD $7.04995
≥100 USD $6.82955
≥500 USD $6.60915
≥1000 USD $6.38875
Inventory: 515
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Thickness 7.56mm
Height 7.81mm

Technical

Isolation Non-Isolated
Switcher Configuration BUCK
Min Output Voltage 900mV
Current - Output 1 3A
Max Output Voltage 3.6V
Output Power 10.8W
Output Current 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 3V
Voltage - Output 1 0.9V~3.6V
Max Output Current 3A
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 92%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 5
Base Part Number TH04070
Depth 10.16mm
Number of Functions 1
Peak Reflow Temperature (Cel) 235
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Lead (Sn/Pb)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OCP, UVLO
JESD-609 Code e0
Size / Dimension 0.50Lx0.40W x 0.32 H 12.7mmx10.2mmx8.1mm
Series PTH04070W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks

Alternative Model
