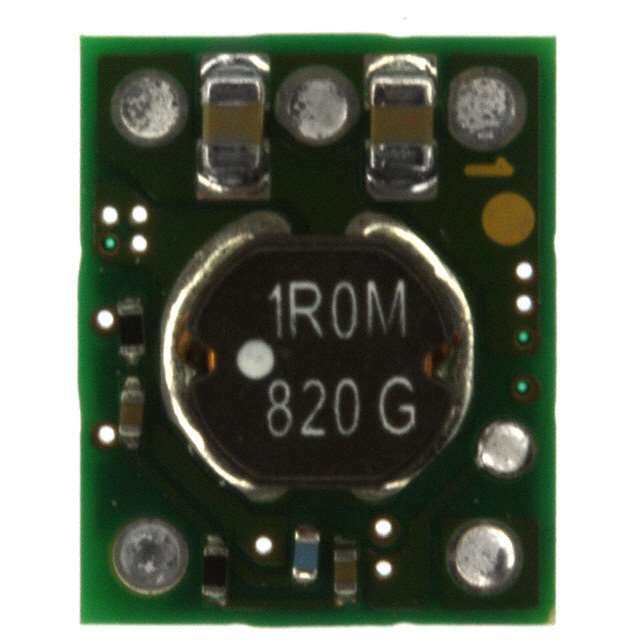

PTH04070WAH
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-3.6V 3A
PDF
/
Buying Options
Total Price: USD $7.44
Unit Price: USD $7.4448
≥1 USD $7.4448
≥10 USD $7.33568
≥100 USD $7.23008
≥500 USD $7.017472
≥1000 USD $6.8046
≥3000 USD $6.591983
Inventory: 1012
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 7.56mm
Height 7.81mm
Technical
Min Input Voltage (DC) 3V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Max Output Power 10.8W
Switcher Configuration BUCK
Min Output Voltage 900mV
Current - Output 1 3A
Max Output Voltage 3.6V
Output Power 10.8W
Output Current 3A
Input Voltage-Nom 5V
Voltage - Output 1 0.9V~3.6V
Max Output Current 3A
Output Voltage 3.6V
Efficiency 92%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 5
Base Part Number TH04070
Frequency 700kHz
Depth 10.16mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature UVLO
JESD-609 Code e3
Size / Dimension 0.50Lx0.40W x 0.31 H 12.7mmx10.2mmx7.9mm
Series PTH04070W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
