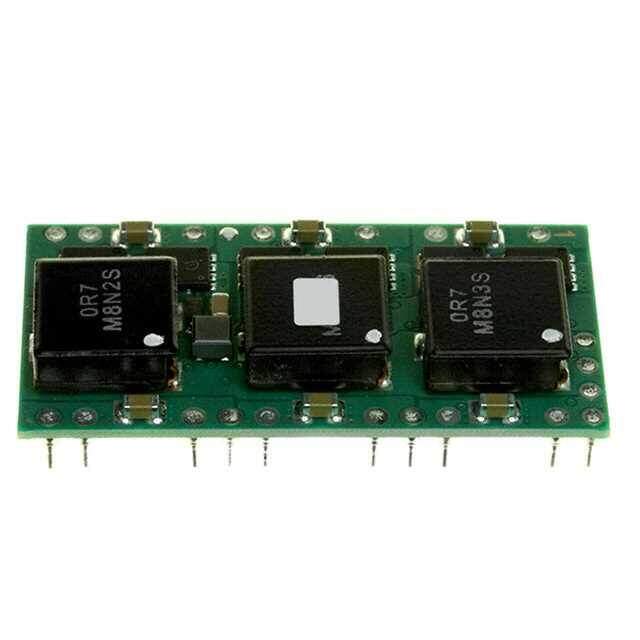

PTH04040WAD
RoHS
RoHS compliant
RoHS compliantPackage 20-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 3.3V/5VIN 1-OUT 0.8V to 2.5V 60A 20-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $54.75
Unit Price: USD $54.7536
≥1 USD $54.7536
≥10 USD $54.3224
≥100 USD $53.89487
≥500 USD $52.183754
≥1000 USD $49.61733
≥3000 USD $46.195389
Inventory: 59
Minimum: 1
-
+
Technical Details
Technical
Output Power 150W
Max Output Voltage 2.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 60A
Min Output Voltage 800mV
Output Current 60A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~2.5V
Max Output Current 60A
Output Voltage 2.5V
Voltage - Input (Max) 5.5V
Efficiency 93%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 20
Base Part Number TH04040
Depth 26.54mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 150W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 2.05Lx1.05W x 0.36 H 52.1mmx26.7mmx9.1mm
Series PTH04040W
Packaging Tray
Operating Temperature -40°C~85°C
Isolation Non-Isolated
Switching Frequency-Max 975kHz
Physical
Number of Pins 20
Surface Mount NO
Package / Case 20-DIP Module
Mounting Type Through Hole
Contact Plating Gold, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.82mm
Height 9.07mm
