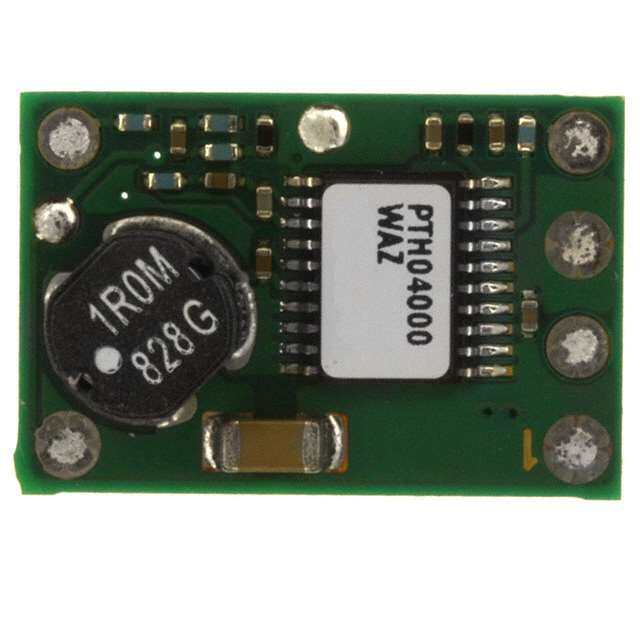

PTH04000WAZ
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-3.6V 3A
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.3392
≥1 USD $7.3392
≥10 USD $7.28464
≥100 USD $7.22832
≥500 USD $7.11744
≥1000 USD $6.895073
≥3000 USD $6.227795
Inventory: 70
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Plating Copper, Silver, Tin
Mounting Type Surface Mount
Package / Case 6-SMD Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH04000W
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 10.8W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 12.57mm
Base Part Number TH04000
Pin Count 6
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 92%
Output Voltage 3.6V
Max Output Current 3A
Voltage - Output 1 0.9V~3.6V
Input Voltage-Nom 3.3V
Trim/Adjustable Output YES
Output Current 3A
Output Power 10.8W
Max Output Voltage 3.6V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 3A
Min Output Voltage 900mV
Max Output Power 10.8W
Isolation Non-Isolated
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 3V
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
