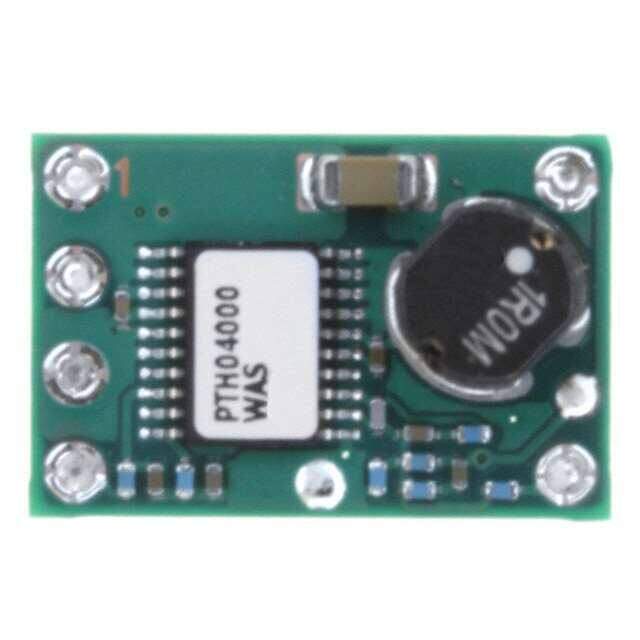

PTH04000WAS
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
3-A, 3.3/5-V Input Adj Switching Reg W/auto-track <az
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.3392
≥1 USD $7.3392
≥10 USD $7.28464
≥100 USD $7.22832
≥500 USD $7.11744
≥1000 USD $6.895073
≥3000 USD $6.227795
Inventory: 138
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Non-Isolated
Min Output Voltage 900mV
Total Power Output-Max 9.9W
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 10.8W
Output Current 3A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 3V
Voltage - Output 1 0.9V~3.6V
Max Output Current 3A
Output Voltage 3.6V
Voltage - Input (Max) 5.5V
Efficiency 92%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 6
Base Part Number TH04000
Depth 12.57mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Lead (Sn/Pb)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e0
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
Series PTH04000W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Surface Mount NO
Package / Case 6-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
