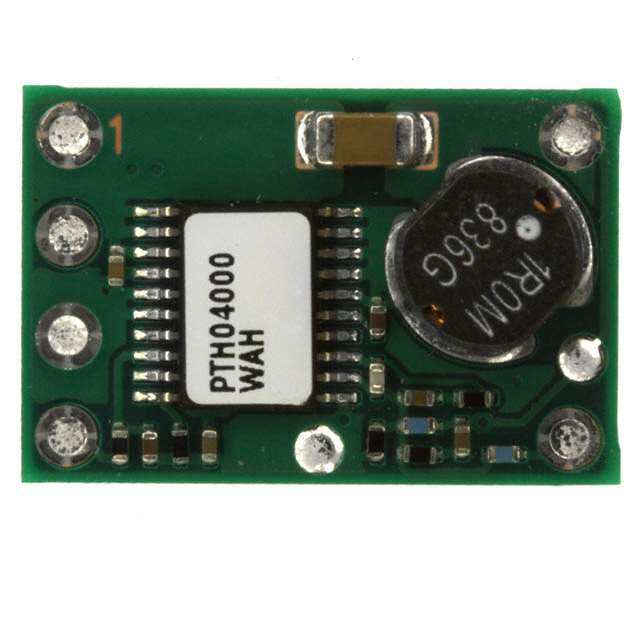

PTH04000WAH image
Favorite
PTH04000WAH image
Favorite

PTH04000WAH

Texas Instruments
RoHS
RoHS RoHS compliant
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC to DC 3.3 Volt/5VIN 1 Output 0.9 Volt to 3.6 Volt 3A 6-Pin DIP Module
PDF
/
Buying Options
Total Price: USD $7.34
Unit Price: USD $7.3392
≥1 USD $7.3392
≥10 USD $7.28464
≥100 USD $7.22832
≥500 USD $7.11744
≥1000 USD $6.895117
≥3000 USD $6.227804
Inventory: 148
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 8.25mm
Height 8.5mm

Technical

Min Input Voltage (DC) 3V
Max Input Voltage (DC) 5.5V
Isolation Non-Isolated
Max Output Power 10.8W
Min Output Voltage 900mV
Current - Output 1 3A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 10.8W
Output Current 3A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Output 1 0.9V~3.6V
Max Output Current 3A
Output Voltage 3.6V
Efficiency 92%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 6
Base Part Number TH04000
Frequency 700kHz
Depth 18.9mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.75Lx0.50W x 0.34 H 19.1mmx12.7mmx8.6mm
Series PTH04000W
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 6
Surface Mount NO
Package / Case 6-DIP Module
Mounting Type Through Hole
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
