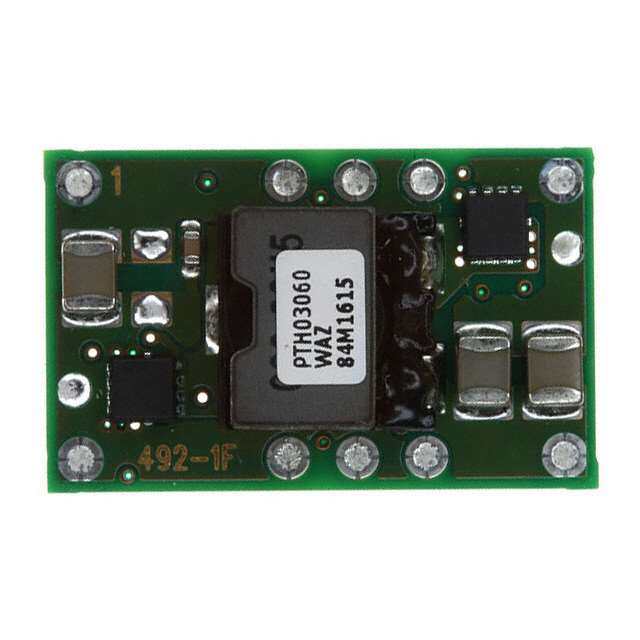

PTH03060WAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.8-2.5V 25W
PDF
/
Buying Options
Total Price: USD $14.78
Unit Price: USD $14.7752
≥1 USD $14.7752
≥10 USD $14.6608
≥100 USD $14.54816
≥500 USD $14.32053
≥1000 USD $13.638654
≥3000 USD $12.502107
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH03060W
Size / Dimension 0.99Lx0.62W x 0.38 H 25.3mmx15.8mmx9.6mm
JESD-609 Code e1
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Max Power Dissipation 25W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Depth 15.27mm
Frequency 300kHz
Base Part Number TH03060
Pin Count 10
Number of Outputs 1
Efficiency 93%
Output Voltage 2.5V
Max Output Current 10A
Voltage - Output 1 0.8V~2.5V
Input Voltage-Nom 3.3V
Trim/Adjustable Output YES
Output Current 10A
Output Power 25W
Max Output Voltage 2.5V
Current - Output 1 10A
Min Output Voltage 800mV
Max Output Power 25W
Isolation Non-Isolated
Max Input Voltage (DC) 3.65V
Min Input Voltage (DC) 2.95V
Dimensions
Height 9mm
Thickness 8.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
