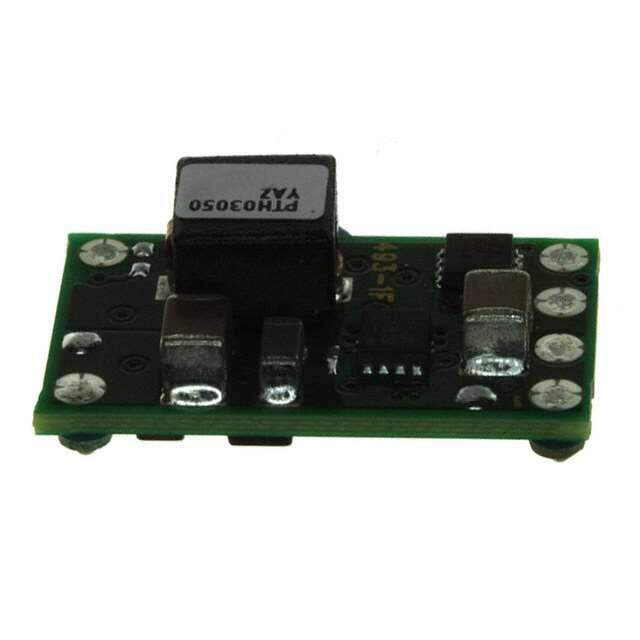

PTH03050YAZ
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .55-1.8V 6A SMD
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.4256
≥1 USD $12.4256
≥10 USD $12.32704
≥100 USD $12.23288
≥500 USD $12.045088
≥1000 USD $11.668642
≥3000 USD $10.539417
Inventory: 96
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Non-Isolated
Min Output Voltage 550mV
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT
Max Output Voltage 1.8V
Output Power 50W
Quiescent Current 10mA
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.55V~1.8V
Max Output Current 6A
Output Voltage 1.8V
Voltage - Input (Max) 3.65V
Efficiency 88%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 6
Base Part Number TH03050
Depth 12.57mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10.8W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, UVLO
JESD-609 Code e1
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
Series PTH03050Y
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 2.9g
Number of Pins 6
Surface Mount YES
Package / Case 6-SMD Module
Mounting Type Surface Mount
