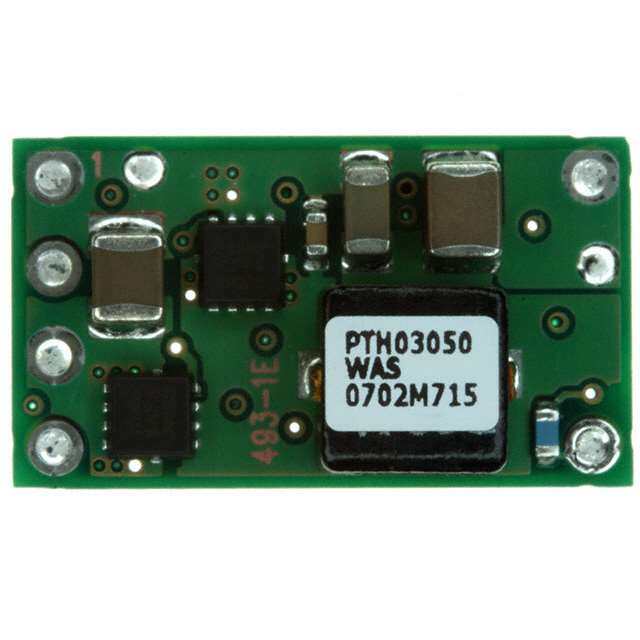

PTH03050WAST
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
6 A, 3.3-V Input Non-Isolated Wide Adjust Module w/ Auto-Track 6-Surface Mount Module -40 to 85
PDF
/
Buying Options
Total Price: USD $17.78
Unit Price: USD $17.78495
≥1 USD $17.78495
≥10 USD $14.59295
≥100 USD $14.13695
≥500 USD $13.68095
≥1000 USD $13.22495
Inventory: 1857
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 8.25mm
Height 8.5mm
Technical
Isolation Non-Isolated
Min Output Voltage 800mV
Current - Output 1 6A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 2.5V
Output Power 15W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~2.5V
Max Output Current 6A
Output Voltage 2.5V
Voltage - Input (Max) 3.65V
Efficiency 94%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 6
Base Part Number TH03050
Depth 12.57mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 15W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
Size / Dimension 0.87Lx0.50W x 0.36 H 22.1mmx12.7mmx9.1mm
Series PTH03050W
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 6
Surface Mount NO
Package / Case 6-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 8 Weeks
