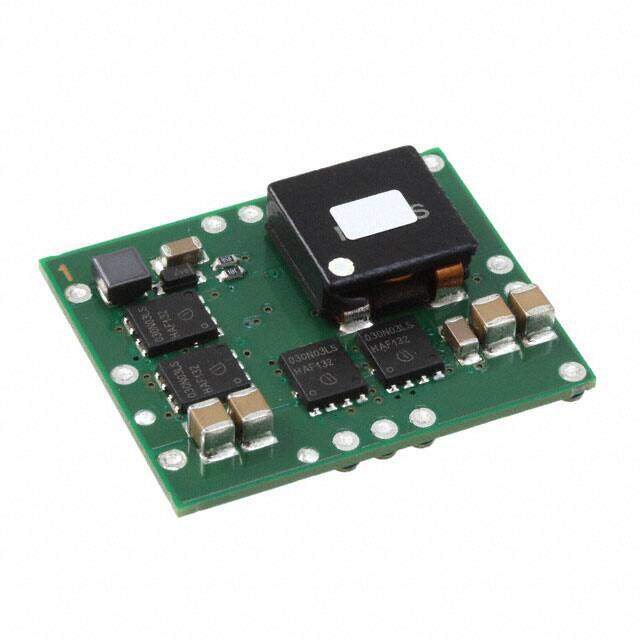

PTH03030WAZ
RoHS
RoHS compliant
RoHS compliantPackage 13-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 3.3VIN 1-OUT 0.8V to 2.5V 30A 13-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $19.36
Unit Price: USD $19.36
≥1 USD $19.36
Inventory: 108
Minimum: 1
-
+
Technical Details
Technical
Total Power Output-Max 60W
Min Output Voltage 800mV
Switching Frequency-Max 325kHz
Isolation Non-Isolated
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 2.5V
Output Power 75W
Output Current 30A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~2.5V
Max Output Current 30A
Output Voltage 2.5V
Voltage - Input (Max) 3.65V
Efficiency 93%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 13
Base Part Number TH03030
Depth 28.45mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position QUAD
Technology HYBRID
Max Power Dissipation 75W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 1.37Lx1.12W x 0.38 H 34.8mmx28.5mmx9.6mm
Series PTH03030W
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 9mm
Thickness 8.75mm
Length 34.8mm
Physical
Number of Pins 13
Surface Mount NO
Package / Case 13-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
