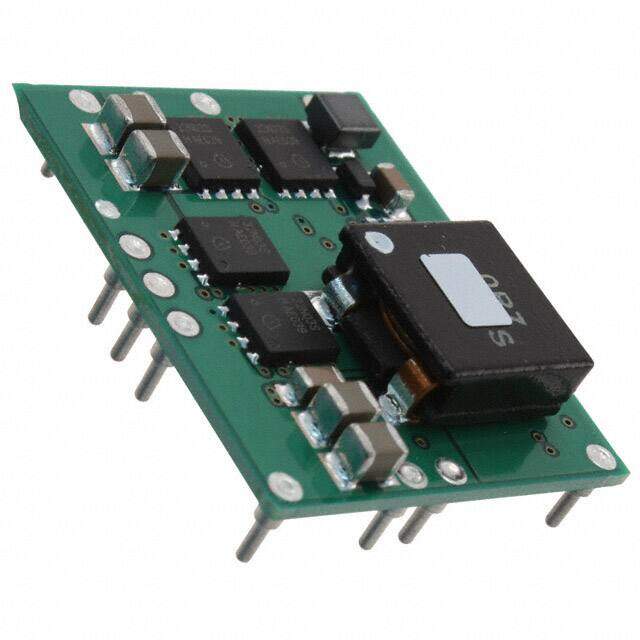

PTH03030WAD
RoHS
RoHS compliant
RoHS compliantPackage 13-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP ADJ 30A 3.3V TH 13DIP
PDF
/
Buying Options
Total Price: USD $101.87
Unit Price: USD $101.8742
≥1 USD $101.8742
≥10 USD $98.58815
≥100 USD $95.3021
≥500 USD $85.443
Inventory: 1902
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Gold, Tin
Mounting Type Through Hole
Package / Case 13-DIP Module
Surface Mount NO
Number of Pins 13
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH03030W
Size / Dimension 1.37Lx1.12W x 0.35 H 34.8mmx28.4mmx8.9mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 13
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 75W
Technology HYBRID
Terminal Position QUAD
Terminal Form PIN/PEG
Number of Functions 1
Isolation Non-Isolated
Switching Frequency-Max 325kHz
Min Output Voltage 800mV
Total Power Output-Max 60W
Current - Output 1 30A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 2.5V
Output Power 75W
Output Current 30A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~2.5V
Max Output Current 30A
Output Voltage 2.5V
Voltage - Input (Max) 3.65V
Efficiency 93%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 13
Base Part Number TH03030
Depth 28.45mm
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 34.8mm
Height 9mm
