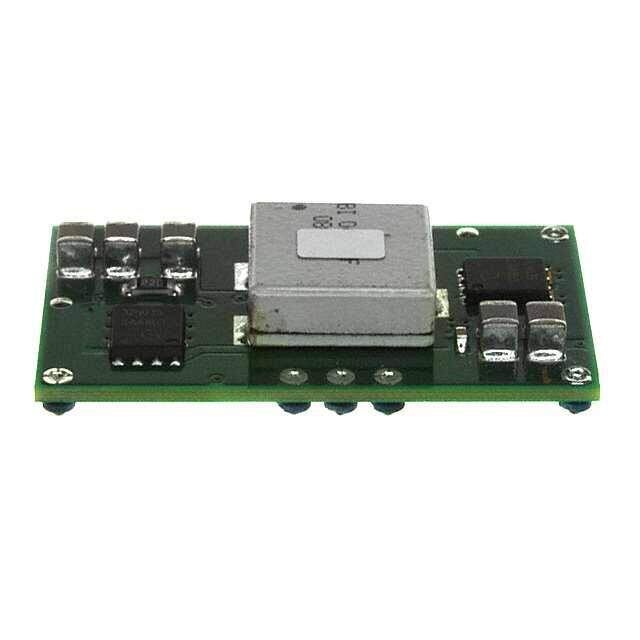

PTH03020WAZ
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-2.5V 55W
PDF
/
Buying Options
Total Price: USD $24.78
Unit Price: USD $24.7808
≥1 USD $24.7808
≥10 USD $24.59424
≥100 USD $24.40284
≥500 USD $22.8778
≥1000 USD $20.97128
≥3000 USD $20.58995
Inventory: 62
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 37.97mm
Height 9mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 340kHz
Min Output Voltage 800mV
Total Power Output-Max 44W
Current - Output 1 22A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 2.5V
Output Power 120W
Output Current 22A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~2.5V
Max Output Current 22A
Output Voltage 2.5V
Voltage - Input (Max) 3.65V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH03020
Depth 22.1mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 55W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, UVLO
JESD-609 Code e1
Size / Dimension 1.49Lx0.87W x 0.38 H 38.0mmx22.1mmx9.6mm
Series PTH03020W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount YES
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Alternative Model
