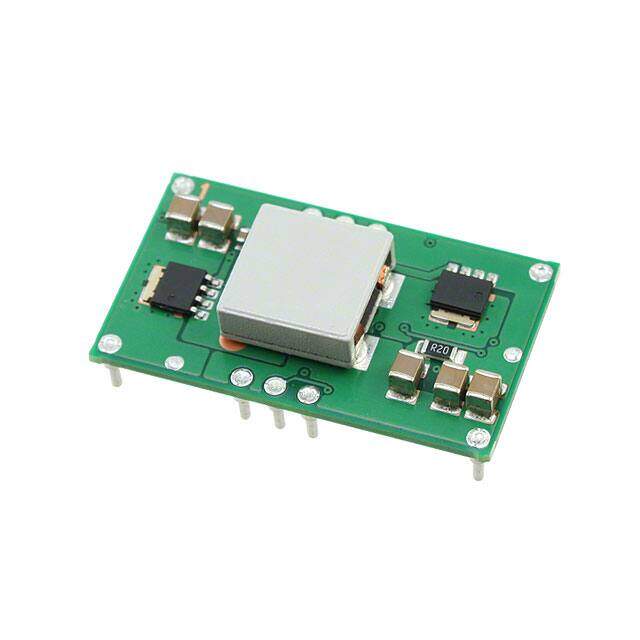

PTH03020WAH
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE PIP .8-2.5V 22A T/H 10DIP
PDF
/
Buying Options
Total Price: USD $32.43
Unit Price: USD $32.4311
≥1 USD $32.4311
≥10 USD $26.61045
≥100 USD $25.77825
≥500 USD $24.947
≥1000 USD $24.11575
Inventory: 6205
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 8.75mm
Length 37.97mm
Height 9mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 340kHz
Min Output Voltage 800mV
Total Power Output-Max 44W
Current - Output 1 22A
Control Mode VOLTAGE-MODE
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 2.5V
Output Power 55W
Output Current 22A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.95V
Voltage - Output 1 0.8V~2.5V
Max Output Current 22A
Output Voltage 2.5V
Voltage - Input (Max) 3.65V
Efficiency 95%
Approval Agency UL, CSA
Number of Outputs 1
Pin Count 10
Base Part Number TH03020
Depth 22.1mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 55W
Subcategory Power Supply Modules
HTS Code 8504.40.85.00
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 1.50Lx0.87W x 0.35 H 38.1mmx22.1mmx8.9mm
Series PTH03020W
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Surface Mount NO
Package / Case 10-DIP Module
Mounting Type Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
Alternative Model
