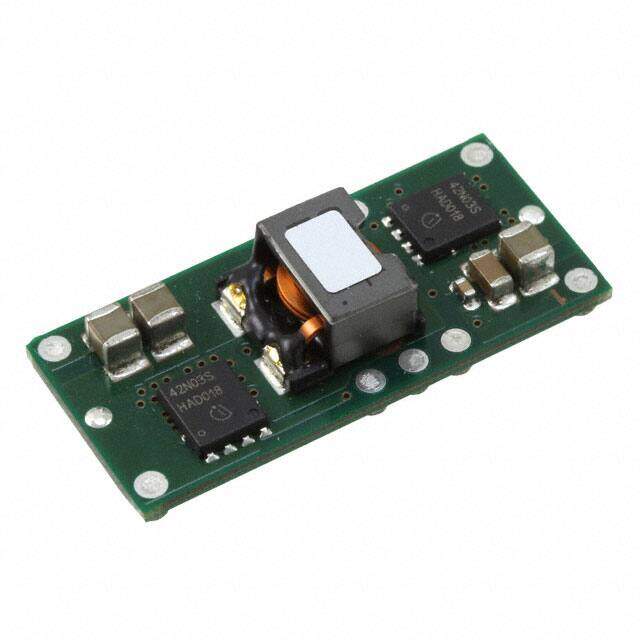

PTH03010WAS
RoHS
/
Package 10-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 3.3VIN 1-OUT 0.8V to 2.5V 15A 10-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $16.68
Unit Price: USD $16.6848
≥1 USD $16.6848
≥10 USD $16.5528
≥100 USD $16.4252
≥500 USD $16.168416
≥1000 USD $15.398416
≥3000 USD $14.115288
Inventory: 50
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mounting Type Surface Mount
Package / Case 10-SMD Module
Surface Mount YES
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH03010W
Size / Dimension 1.37Lx0.62W x 0.38 H 34.8mmx15.8mmx9.6mm
Feature Remote On/Off, OCP, OTP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
HTS Code 8504.40.85.00
Subcategory Power Supply Modules
Max Power Dissipation 38W
Technology HYBRID
Terminal Position DUAL
Terminal Form BALL
Number of Functions 1
Depth 15.75mm
Base Part Number TH03010
Pin Count 10
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 93%
Voltage - Input (Max) 3.65V
Output Voltage 2.5V
Max Output Current 15A
Voltage - Output 1 0.8V~2.5V
Voltage - Input (Min) 2.95V
Input Voltage-Nom 3.3V
Trim/Adjustable Output YES
Output Current 15A
Max Output Voltage 2.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 15A
Total Power Output-Max 30W
Min Output Voltage 800mV
Switching Frequency-Max 325kHz
Isolation Non-Isolated
Dimensions
Height 9mm
Length 34.8mm
Thickness 8.75mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
