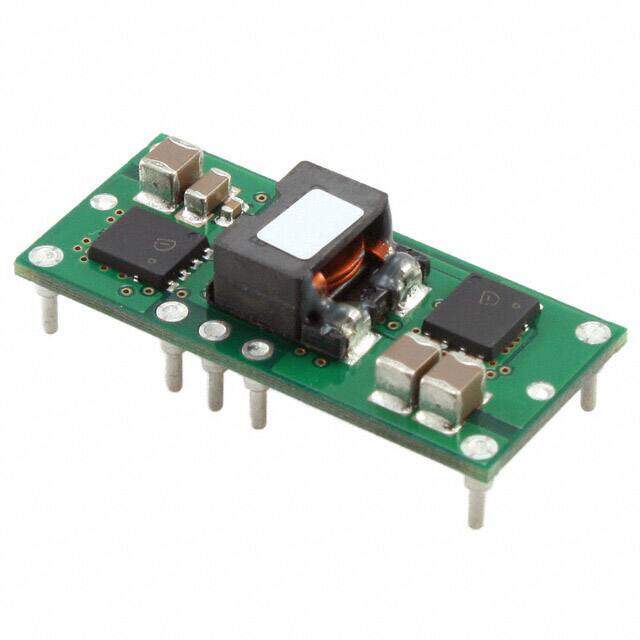

PTH03010WAD
RoHS
RoHS compliant
RoHS compliantPackage 10-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 3.3VIN 1-OUT 0.8V to 2.5V 15A 10-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $69.42
Unit Price: USD $69.4203
≥1 USD $69.4203
≥10 USD $56.96105
≥100 USD $55.18075
≥500 USD $53.40045
≥1000 USD $51.6211
Inventory: 2405
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mounting Type Through Hole
Package / Case 10-DIP Module
Surface Mount NO
Number of Pins 10
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTH03010W
Size / Dimension 1.37Lx0.62W x 0.35 H 34.8mmx15.7mmx8.9mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Subcategory Power Supply Modules
Max Power Dissipation 37.5W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 15.75mm
Frequency 300kHz
Base Part Number TH03010
Pin Count 10
Number of Outputs 1
Approval Agency UL, CSA
Efficiency 93%
Output Voltage 2.5V
Max Output Current 15A
Voltage - Output 1 0.8V~2.5V
Input Voltage-Nom 3.3V
Trim/Adjustable Output YES
Output Current 15A
Output Power 37.5W
Max Output Voltage 2.5V
Protections OUTPUT OVER CURRENT;THERMAL
Control Mode VOLTAGE-MODE
Current - Output 1 15A
Min Output Voltage 800mV
Max Output Power 37.5W
Isolation Non-Isolated
Max Input Voltage (DC) 3.65V
Min Input Voltage (DC) 2.95V
Dimensions
Height 9mm
Length 34.8mm
Thickness 8.75mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
