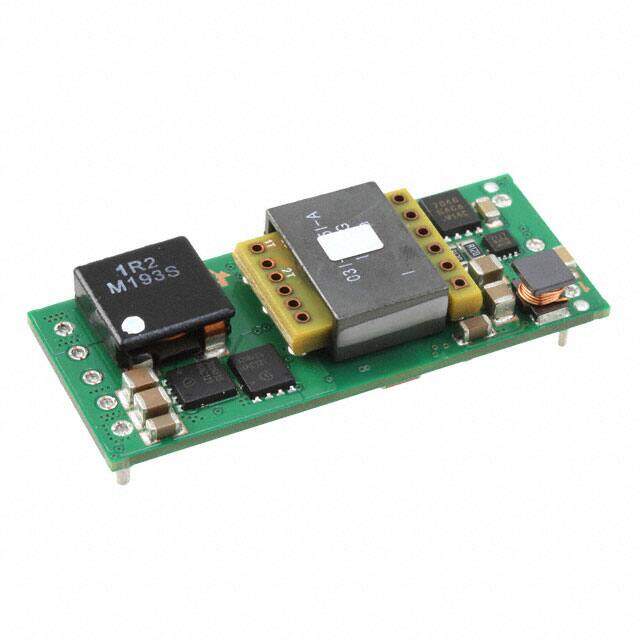

PTEA420025N2AD
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 20A 48Vin Iso 1/8th Brick DC/DC Cnvrtr
PDF
/
Buying Options
Total Price: USD $45.19
Unit Price: USD $45.191165
≥1 USD $45.191165
≥10 USD $42.63317
≥100 USD $40.219976
≥500 USD $37.943372
≥1000 USD $35.795634
Inventory: 1298
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 13.208mm
Technical
Min Output Voltage 1.5V
Current - Output 1 20A
Max Output Voltage 2.75V
Output Power 50W
Output Current 20A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 20A
Output Voltage 2.5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 89%
Qualification Status Not Qualified
Number of Outputs 1
Pin Count 8
Base Part Number TEA420025
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 50W
Applications ITE (Commercial)
Terminal Finish TIN
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 2.22Lx0.90W x 0.52 H 56.4mmx22.9mmx13.2mm
Series PTEA420025
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Surface Mount NO
Package / Case 8-DIP Module, 1/8 Brick
Mounting Type Through Hole
