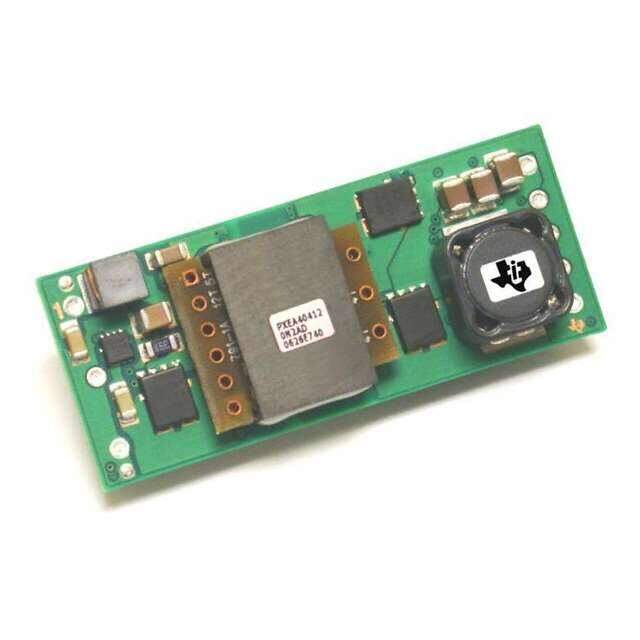

PTEA404120P2AD
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC-DC 48VIN 4.2A HORZ T/H
PDF
/
Buying Options
Total Price: USD $76.62
Unit Price: USD $76.621697
≥1 USD $76.621697
≥10 USD $72.284616
≥100 USD $68.193038
≥500 USD $64.333052
≥1000 USD $60.691563
Inventory: 1444
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 6 days ago)
Physical
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Surface Mount NO
Number of Pins 8
Weight 18g
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series PTEA404120 (50W)
Size / Dimension 2.22Lx0.90W x 0.52 H 56.4mmx22.9mmx13.2mm
JESD-609 Code e3
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Power Rating 50W
Max Power Dissipation 50W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
Depth 22.86mm
Base Part Number TEA404120
Pin Count 8
Number of Outputs 1
Efficiency 91%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 12V
Max Output Current 4.2A
Voltage - Input (Min) 35V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 4.2A
Output Power 50W
Max Output Voltage 13.2V
Current - Output 1 4.2A
Min Output Voltage 7.2V
Isolation Isolated
Dimensions
Height 11.95mm
Thickness 11.69mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
