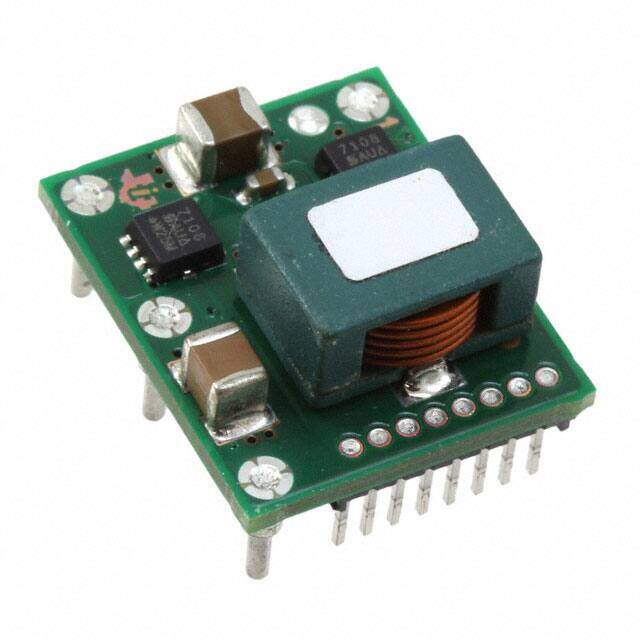

PTD08A015WAD
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MODULE DGTL POWERTRAIN 15A 12DIP
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
Inventory: 37
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 0m
Height 8mm
Technical
Isolation Non-Isolated
Nominal Input Voltage 12V
Current - Output 1 15A
Output Current 15A
Trim/Adjustable Output YES
Input Voltage-Nom 4.75V
Voltage - Input (Min) 4.75V
Voltage - Output 1 0.7V~3.6V
Max Output Current 15A
Output Voltage 3.6V
Voltage - Input (Max) 14V
Efficiency 96%
Number of Outputs 1
Pin Count 12
Base Part Number TD08A015
Depth 15.75mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 54W
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 0.75Lx0.62W x 0.32 H 19.1mmx15.7mmx8.1mm
Series Powertrain?
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 12
Package / Case 12-DIP Module
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 8 Weeks
