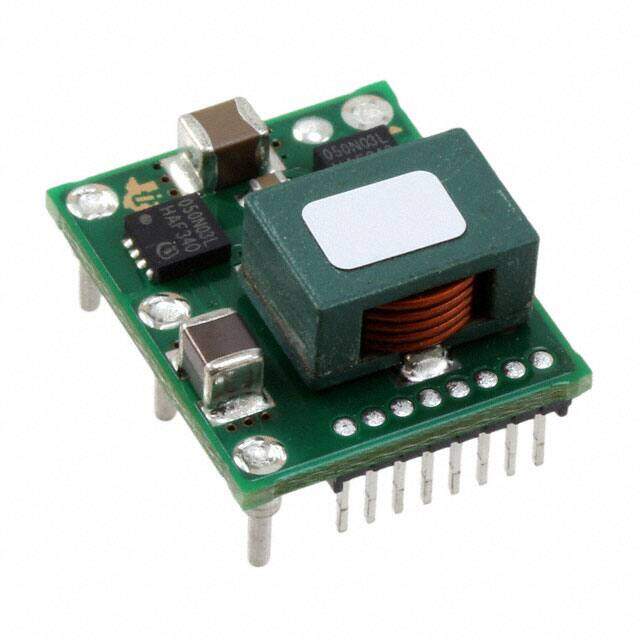

PTD08A010WAD image
Favorite
PTD08A010WAD image
Favorite

PTD08A010WAD

Texas Instruments
RoHS
RoHS RoHS compliant
Package 12-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 0.7V to 3.6V 10A 12-Pin DIP Module Tray
PDF
/
Buying Options
Total Price: USD $16.61
Unit Price: USD $16.6144
≥1 USD $16.6144
≥10 USD $16.48944
≥100 USD $16.36096
≥500 USD $16.10547
≥1000 USD $15.338523
≥3000 USD $14.060279
Inventory: 858
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Thickness 0m
Height 8mm

Technical

Min Input Voltage (DC) 4.75V
Max Input Voltage (DC) 14V
Isolation Non-Isolated
Max Output Power 36W
Min Output Voltage 700mV
Nominal Input Voltage 12V
Current - Output 1 10A
Max Output Voltage 3.6V
Output Power 36W
Output Current 10A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Output 1 0.7V~3.6V
Max Output Current 10A
Output Voltage 3.6V
Efficiency 95%
Number of Outputs 1
Base Part Number TD08A010
Depth 15.75mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form PIN/PEG
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 36W
HTS Code 8504.40.85.00
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.75Lx0.62W x 0.32 H 19.1mmx15.7mmx8.1mm
Series Powertrain?
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Number of Pins 12
Package / Case 12-DIP Module
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
